Home > Products > Sideshift Backhoe Loader > KAT sideshift backhoe loader

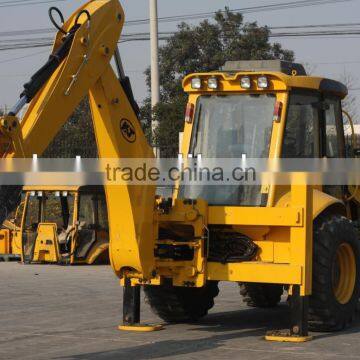

KAT sideshift backhoe loader
- 300 Unit / Units per Month
- Qingdao Lianyungang Shanghai
- T/T
You May Like
Product Details
| Condition | New | Brand Name | Kattier | |
| Model Number | KAT 920 | Place of Origin | Jiangsu, China | |
| Type | Backhoe Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 5840*2350*2700 | Rated Load | 2500Kg | |
| Warranty | 12 months or 2000 hours | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
Adopt the Deutz turbo charging engine, which have the advantage of high fuel consumption efficiency, low emission, big powerman.
Adopt the Deutz turbo charging engine, which have the advantage of high fuel consumption efficiency, low emission, big powerman margin, etc.
The international famous enterprise of CARRARO, Electric-hydraulic control, Synchromesh mechanical shift.
The international famous enterprise of CARRARO, Single-side braking axle with free-maintenance wet-type.
Main Technical Parameters:
Item | Unit | Parameter | |||
Backhoe bucket capacity | m3 | 0.2 | |||
Rated loading bucket capacity | m3 | 0.9 | |||
Rated Lifting Force | KN | 25 | |||
Engines rated power/rated speed | KW/r/min | 70/2200 | |||
Total operating weight | kg | 8200 | |||
Backhoe turning angle | Left | º | 90 | ||
Right | º | 90 | |||
Backhoe parameter | Max. digging radius | mm | 5390 | ||
Max. dump height | mm | 3500 | |||
Radius at the max. dump height | mm | 1084 | |||
Max. digging radius at ground level | mm | 5235 | |||
Digging buckets max. rotating angle | º | 180 | |||
Max. digging depth | mm | 4365 | |||
Max. digging force | KN | >50 | |||
Loading parameter | Max. dump height | mm | 2618 | ||
Dump reach at max. dump height | mm | 670 | |||
Bucket drawback angle | Transportation position | º | 43 | ||
Ground position | º | 34 | |||
Dump angle | º | 43.5 | |||
Digging depth | mm | 191 | |||
Max. breakout force | KN | >40 | |||
Max. grade ability | % | 16.7 | |||
Max. traction power | KN | 70 | |||
Gear and travel speed | Forward/Backward gear I | km/h | 5.5/5.8 | ||
Forward/Backward gear Ⅱ | 9.9/9.9 | ||||
Forward/Backward gear Ⅲ | 21.4/21.4 | ||||
Forward/Backward gear IV | 38/38 | ||||
Min. turning radius | mm | 4300 | |||
Total length | mm | 5840 | |||
Total height (Cab) | mm | 2700 | |||
Max. height for transportation | mm | 3530 | |||
Total Width | mm | 2350 | |||
Bucket width | mm | 2315 | |||
Loading Operation Parameter | |
Rated Bucket Capacity | 0.9m³ |
Max. Dumping Clearance | 2618mm |
Max. Dump reach | 670 mm |
Dig depth | 191 mm |
Bucket upward angle at max. working height | 63° |
Drawback angle at ground pos. | 40° |
Max. breakout force | >40KN |
Rated Lifting Force | 25KN |
Rise Time | ≤5.5s |
Fall Time | ≤4.5s |
Tilting Time | ≤1.5s |
Excavating Operation Parameter | |
Rated Backhoe Bucket Capacity | 0.2 m³ |
Max. Digging Depth | 4365mm |
Max. Digging Force | >50KN |
Max. Digging Radius | 5390mm |
Max. Dump Height | 3500 mm |
Max. Outreach from mid. of Rear Axle | 6583 mm |
Max. Outreach at the max. dump height | 1084 mm |
Turning Angle | 180° |
