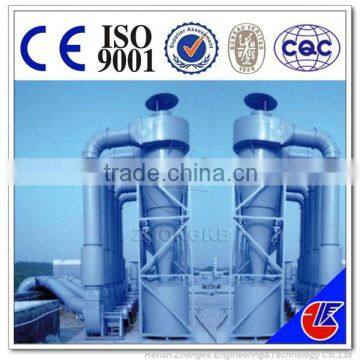

Professional copper mining machine cyclone with low price used in mine

1.cyclone

Cyclone  is one part of cyclone dust control system. Cyclone dust control system consists of indoor dust removing system, dust sediment room, spray chamber and chimney. Ir greatly helps in reducing the dust inside the workshop and in the exhaust. The powder materials can be collected from dust chamber, effectively decreasing the waste of materials.

As an environmental friendly machine, it is mainly used in the mining industry, construction field, and its main components consist of barrel, air inlet pipe, and outlet pipe.

2. Structure of cyclone

3. Types of cyclone

The most common types of centrifugal, or inertial, collectors in use today are:

              Single-cyclone separators                                           Multiple-cyclone separators
Multiple-cyclone separators remove more dust than single cyclone separators because the individual cyclones have a greater length and smaller diameter. The longer length provides longer residence time while the smaller diameter creates greater centrifugal force. These two factors result in better separation of dust particulates. The pressure drop of multiple-cyclone separators collectors is higher than that of single-cyclone separators, requiring more energy to clean the same amount of air. A single-chamber cyclone separator of the same volume is more economical, but doesn't remove as much dust.

4. Working Principle of cyclone

Centrifugal collectors use cyclonic action to separate dust particles from the gas stream.

In a typical cyclone, the dust gas stream enters at an angle and is spun rapidly.

The centrifugal force created by the circular flow throws the dust particles toward the wall of the cyclone.

After striking the wall, these particles fall into a hopper located underneath.

5. Advantages of cyclone

1) Adopt tangential intake and add into the wine guide plate, on basic of the cartridge fillter attach the centrifugal dust-removing effect, improve the efficiency of dust.
2) Using special cloth to filter dust , dust filtering effect is good.
3) Fan, cloth tube and filter combination as a whole, can shorten the wind nets. To simplify process flow, reduces the wind net investment in equipment.

6. Parameters of cyclone

Unit machine nude in standard shipping container, seaworthy package.

Wooden case for spare parts and components.

Trying to meet the special requirements the customers request.

1. Pre-sales services:

   1) Select proper equipment model;
   2) Design and manufacture products according to clients' special requirement;
   3) Arrange for visiting our factory, assist them to handle relative procedure, such as visa.

2. Services during the sale:

   1) Make sure goods prepared within delivery time;
   2) Pre-check and accept products ahead of delivery;
   3) Prepare documents required to help customer pass customs clearance;
   4) Help clients to make Project evaluation and feasibility analysis and draft solving plans.

3. After-sales services:

   1) Assist clients to prepare for the first construction scheme;
   2) Install, debug and examine the equipment;
   3) Train technical personnel the first-line operators;
   4) Provide technical exchanging
   5) Offer spare parts at a best price for long term.

1. About us:

      Henan Zhongke Engineering & Technology Co., Ltd. is specialized in heavy equipment like various crushers, ball mill, kiln, magnetic separators, mining machines, bricks and blocks machines, cement production line, rotary kiln, AAC block line, etc., which is located in the middle of China. Our high quality products, competitive price and excellent after-sales service had gain us good reputation in this field.

2. Qualification and honour:

3. Scenes of workshop:

 4. Customers Visits

 Contact us:
