Ball mill, energy saving ball mill for sand/stone production line
- Tianjing/Qingdao
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | Zhongke | |
| Model Number | 1500*3000 | Weight | 17t |
Product Description

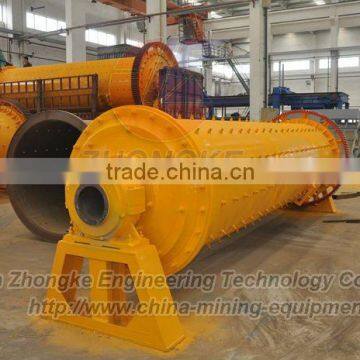

The ball mill is a horizontal rotating device transmitted by the outer gear.
The materials are transferred to the grinding chamber through the quill shaft uniformly.
There are ladder liner and ripple liner and different specifications of steel balls in the chamber.
The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials.
The ground materials are discharged through the discharging board thus the grinding process is finished.
Parameters
Model | input size(mm) | Output size(mm) | Weight of ball(t) | Speed of bucket(r/min) | Power(kw) | Capacity(t/h) | Weight(kg) |
900*1800 | 15 | 0.075-0.89 | 1.9 | 37 | 15 | 0.5-2 | 3400 |
900*2100 | 15 | 0.075-0.4 | 2.3 | 37 | 18.5 | 0.4-2 | 3900 |
900*3000 | 25 | 0.075-0.4 | 3.85 | 35 | 30 | 1.1-2.5 | 7780 |
1200*2400 | 25 | 0.075-0.4 | 4.6 | 35 | 30 | 1.3-3.2 | 8650 |
1200*2800 | 25 | 0.075-0.4 | 5.4 | 35 | 37 | 1.5-3.7 | 10020 |
1200*4500 | 25 | 0.075-0.4 | 8.6 | 35 | 45 | 2.7-6.79 | 14000 |
1500*3000 | 25 | 0.047-0.4 | 9 | 29 | 75 | 3.3-8.2 | 14122 |
1500*3500 | 25 | 0.047-0.4 | 10.5 | 29 | 75 | 3.3-8.5 | 15636 |
1500*4500 | 25 | 0.047-0.4 | 13.5 | 29 | 90 | 4.5-12 | 20000 |
1500*5700 | 25 | 0.047-0.4 | 17 | 29 | 110 | 2.6-14 | 25000 |
1830*3000 | 25 | 0.047-0.4 | 13.5 | 24 | 135 | 4-15 | 28000 |
1830*4500 | 25 | 0.047-0.4 | 20 | 24 | 155 | 4-19 | 32000 |
1830*7000 | 25 | 0.047-0.4 | 31.5 | 24 | 210 | 6-22 | 37500 |
2100*3000 | 25 | 0.047-0.4 | 18 | 22 | 210 | 6.4-28 | 40790 |
2100*4000 | 25 | 0.047-0.4 | 21.5 | 22 | 210 | 7.6-28 | 43454 |
