Home > Products > Wind Generator > Small wind generator 300W Dolphin. Combine with wind controller and inverter.

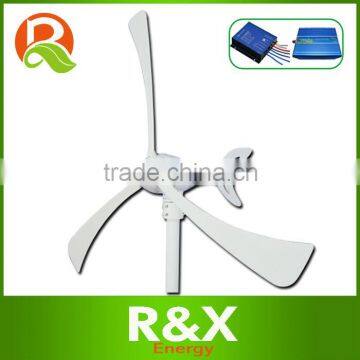

Small wind generator 300W Dolphin. Combine with wind controller and inverter.
- 1000 Piece / Pieces per Month
- SHANGHAI/SHENGZHN
- T/T Credit Card PayPal
You May Like
-
Portable wind generator 400W rated 600w max. Mppt build in controller.
-
230v wind turbine generator. Combine with wind controller and inverter 600w.
-
9000mah Portable Battery Power Bank Charger High Capacity Aluminium Metal Shell Mobile Power USB And Mirco USB Port
-
600w wind/solar hybrid controller 12v/24v with LCD display
-
600w wind/solar hybrid controller with LED display.
-
Wind/solar hybrid charge controller for 600w wind turbine generator+300W solar panel.
Product Details
Place of Origin | Jiangsu, China | Brand Name | R&X | |
Model Number | Dolphin-300 | Type | Wind Power Generator |
Product Description
Specifications
Small wind generator1.Start in breeze 3.5m/s
2.Spinning then charging
3.High efficient output.
4.CE,ROHS,ISO9001
Small wind generator 300W Dolphin. Combine with wind controller and inverter.
Sample Purchase online: Click here
Please leave a message about whether you need
12V or 24V.
Introduction
1. Large power, low volume, low weight, high efficiency
2. Carbon fiber blades, high efficiency of anti-wind ability
3. Blades with the ability of automatically stall protection under strong wind
Technical Data
Model | Dolphin-300 |
Rated Power | 300W |
Rated Voltage | DC/AC 12V/24V |
Rated Current | 25A/12.5A |
Rated Speedy | 1850r/m |
Max Power | 380W |
Number of blade | 3 PCS |
Start-up wind speed | 3.5m/s |
Cut-in wind speed | 3.5m/s |
Cut-out wind speed | 18m/s |
Security wind speed | 45m/s |
Rated wind speed | 12.5m/s |
Engine | Three-permanent magnet generator |
Rotor diameter | 1250mm |
Blade material | Carbon fiber |
Output line anti-winding device | Overall three-phase commutator |
Over-speed wind protection | Tip stall protection + turned protection + Electromagnetic brake |
Life span | 15years |
Equipment surface protection | Aluminum oxide+plastic coating |
Working temperature | -45°C to 70°C |
N.W. | 5.85kg |
packing dimension | 690*380*220mm |
G.W. | 7.5kg |
Drawing | |
300W monthly power generation curve | |
Powe curve | |
Certification |
Description
1.simple structure,running stably,power supply for city lamp,monitoring and home.
2. Small size and flexibility,lively Colors,beautiful curve,low noise and environmental harmony.
3. Anti-Rust,Anti-Corruption Damp-Proof,Water-Proof,Stand-Proof.
4. Brand New in box
5. CE Certificate
6. ISO9001:2000 Quality Certification
7. ROHS Certification
8. Large power, low volume, high efficiency
9. High efficiency of anti-wind ability,move mutely and steadily
10. Blades with the ability of automatically stall protection under strong wind
11. 3 years free warranty
Picture of controller
Picture of inverter
Application
