Competitive Horizontal Steam Boiler For AAC Block Line (DZL4-1.25-ALL)

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 8 Set / Sets per Month
Port Qingdao Port Tianjin Port Shanghai Port China.
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Natural Circulation	Usage	Industrial
Structure	Fire Tube	Pressure	Low Pressure
Style	Horizontal	Fuel	Coal-fired
Place of Origin	Henan, China	Brand Name	zhongke-steam boiler for aac block line
Model Number	DZL4-1.25-ALL	Output	Steam

Product Description

Specifications

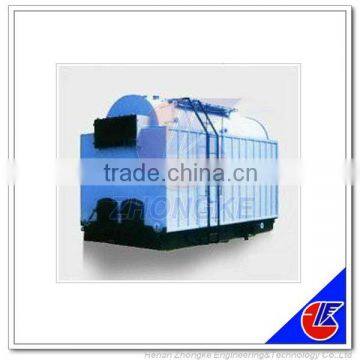

Competitive Horizontal Steam Boiler For AAC Block Line (DZL4-1.25-ALL)
small location,convenient installation and transportatio

Competitive Horizontal Steam Boiler For AAC Block Line (DZL4-1.25-ALL)

The brief introduction of Horizontal steam boiler
The boiler adopts traditional vertical structure, smoke tube is intensified heat transfer with thread form, and uses boiler economizer to reduce funnel temperature, improve product's efficiency and performance.
1. Vertical layout: covering small area, easy installation.
2. Using screw tube and boiler economizer with high efficiency.
3. Automatic control: Good safety performance, easy operation.

The characteristics of reducing exhaust temperature and improving product efficiency performance:

1. Vertical layout. Covering an area of an area small. It is convenient to install.
2. It adopts threaded tubes and pot introspection is high efficiency of coal
3. Automatic control. With good safety performance. Convenient operation.

Performance characteristics:

1. Horizontal layout; Taking up small area; Convenient transportation and installation.
2. Using thread smokestacks with high thermal efficiency.
3. Automatic control; Good safety performance; Easy to operate.

Main Technical Parameters:

Name	Units	Model
		DZL2-1.25-ALL	DZL4-1.25-ALL	DZL6-1.25-ALL
		Specifications
Rated evaporation	T/H	2	4	6
rated working pressure	Mpa	1.25	1.25	1.25
saturated steam temperature	°c	193	193	193
water temperature	°c	20	20	20
boiler thermal efficiency	%	76	76	81
grate area	m²	4.2	4.97	8.22
design types of coal		II type soft coal	II type soft coal	II type soft coal
heating area (reference)	m²	86.2	145.92	236.57
reference weight	t	24.147	26.518	37.492
*size (LWH)*	m	*5.652.63.23*	*6.8472.73.17*	*6.8862.873.68*
