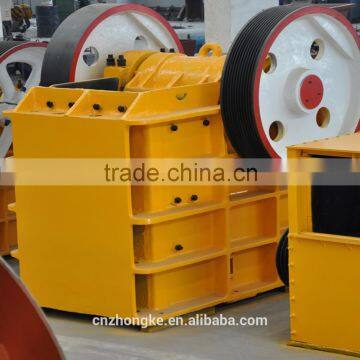

Sale New Technology Jaw Crusher

Introduction of Jaw Crusher

PE series Jaw crusher is mainly applicable to various ores and big blocks in primary and secondary crushing, is widely used in mining, quarry, metallurgy, building, highway, railway, construction waste processing, water conservancy and chemical industry, etc. The maX compression resistant of be curhser material is 320Mpa. It features in high reduction ratio, easy operation, simple construction, repeatable performance, easy maintenance, and low consumption.

Working Principle of Jaw Crusher
The working manner of this series crushing machine is dynamic extrusion type, and its working principle goes like this:
The electro motor drives the belt and belt wheel to make the movable jaw to move up and down through the eccentric shaft, and then movable jaw goes up, the angle between the toggle pate and the movable jaw is bigger, thus pushing the movable jaw to get close to the fixed jaw, and at the same time, the materials are crushed or smashed, thus reaching the goal of crushing.
When the movable jaw goes down, the angle between the toggle pate and the movable jaw is smaller, under the effect of the draw bar and the spring, the movable jaw moves always from the fixed jaw, and then the crushed materials will be discharged out from the lower mouth of the crushing chamber.
With the continuous rotation of the electro motor, the movable jaw of the crusher will do periodic motion to crush and discharge the materials, thus realizing mass production.

Structure of Jaw Crusher

The basic structure of a jaw crusher generally includes seven parts, such as driving medium, rack, the jaw plate and side rack, flywheel, lubrication device, adjusting device and the reset spring.
1. The transmission. Eccentric shaft is the spindle of the crusher, which is bearing huge torsion and made by the high-carbon steel.
2. Rack. The frame is a rigid frame with upper and lower opening. It is the support of the eccentric shaft and bears the reaction of broken material.
3. Jaw plate and side guard board. Dynamic jaw and static jaw are all made up of jaw bed and jaw plate, jaw plate is the working part and fixed to the jaw bed with bolts and wedge iron.
4. The flywheel.The flywheel of jaw crusher is for store the banking energy of dynamic jaw to reuse in the formation of industrial and make the machinery work uniformly.
5. Lubrication device. Eccentric shaft bearing usually adopts concentration circulation lubrication. The support surface of the heart axis and the thrust plate generally feed oil by manual oil gun with grease.
6. Adjusting device. Adjusting device also called adjusting screw. The common adjusting device includes wedge type, subplate type and hydraulic type, and the wedge type is the general choose.
7. Reset spring. The operation of the dynamic jaw is driving with spring. Without the spring the dynamic jaw can't move and the machine won't work.

Application of Jaw Crusher

ZHONEKE PE series of Stone Jaw Crusher machine is used for Primary and Secondary Crushing in mining, smelting, coal, building materials, transportation, water conservation, chemical and other industires to treat vairous materials with particle size around 125-102omm and compressive strength no more than 320 Mpa.

Features of PE series jaw crusher

    1. Jaw crusher is stable performance;
   2. Jaw crusher is even final particles and high crushing ratio;
   3. Optimum structure for reliable quality;
   4. Easy access to wear areas for inspection and maintenance;
   5. Efficient, non-choking operation;
   6. Higher crushing ratio; Lower power consumption;
   7. Excellent jaw plate material.

Main Technical Parameters

Standard export packing, Spare parts in wooden case, big machines loaded in container, large machines use nude packing, cover with plastic cloth. We export through Qingdao Port, also can be nominated by customer. We have superior cargo agent to arrange the sea shipment for each client, competitive price, secure transportation.

Pre-sale services

1. Select proper equipment model;
2. Design and manufacture products according to clients' special requirement;
3. Arrange for visiting our factory, assist them to handle relative procedure, such as vis.

Services during the sale
1. Make sure goods prepared within delivery time;
2. Pre-check and accept products ahead of delivery;
3. Prepare documents required to help customer pass customs clearance.
4. Help clients to make Project evaluation and feasibility analysis and draft solving plans.

After-sale services
1. Assist clients to prepare for the first construction scheme;
2. Install, debug and examine the equipment;
3. Train technical personnel the first-line operators;
4. Provide technical exchanging
5. Offer spare parts at a best price for long term.

Henan Zhongke Engineering & Technology Co., Ltd. is specialized in heavy equipment like various crusher, stone jaw crusher, magnetic separators, mining machines, bricks and blocks machines, cement production line. AAC block line, etc. And it is located in the middle of China. Our competitive price, high quality products and excellent aftersales service had gain us good reputation in this field.
