Product Details
| Condition | New | Type | Walking Tractor | |
| By wheel | 2WD | Usage | Farm Tractor | |
| Drive Type | Gear Drive | Power(W) | 8.9-14.7kw | |
| Certificate | Other, SGS;ISO9002 | Brand Name | HUIYOU or OEM | |
| Model Number | HY-121/121L; HY-151/151L; HY-181/181L; HY-201/201L | Place of Origin | Jiangsu, China |
Product Description

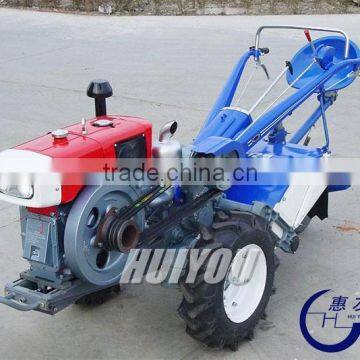

12 HP / 15 HP / 18 HP / 20HP
HUIYOU Walking Tractor / Power Tiller
Chinese tractor,2WD Hand Tractor,Walking tractor,Farm Tractor,Mini tiller,Farm equipment
1. About us:
With 30 years manufacturing and 10 years exporting history, HUIYOU power tillers/walking tractors have best quality and performance.
Now our clients come from all around the world. Due to different market environment, we have the ability to provide OEM production. According to your market situation, such as climate, soil, crops, we will provide you most suitable recommendation and help you find best solution.
2. Main descriptions:
12hp / 15hp / 18hp / 20hp power tiller, walking tractor, hand tractor
Model: ( L: radiator cooling system ) | HY-121 HY-121L | HY-151 HY-151L | HY-181 HY-181L | HY-201 HY-201L | |
Engine: | Model: | ZS195 ZS195NL | ZS/S1100 ZS1100NL | ZS1105 ZS1105NL | ZS1110 ZS1110NL |
Type: | 1-cylinder, Horizontal, 4-cycle | ||||
Combustion system: | Direct Inject | ||||
Bore × Stroke: | 95×115mm | 100×115mm | 105×115mm | 110×115mm | |
Rated output | 12hp | 15hp | 18hp | 20hp | |
Max. output | 14hp | 17hp | 20hp | 22hp | |
Cooling system: | Evaporative / Radiator (as your choice) | ||||
Starting method: | Hand crank / Electric start (as your choice) | ||||
Overall dimension: | 2680×960×1250 mm | ||||
Wheel tread: | 800, 740, 640, 580 mm | ||||
Tire: | 6.00 – 12 rubber tire | ||||
Ground clearance: | 182 mm | ||||
Clutch type: | Two-disc, constant-contact, friction | ||||
Gear & Speed: | 6 forward: | 1.4 / 2.5 / 4.1 / 5.3 / 9.4 / 15.3 km/h | 1.54 / 2.75 / 4.51 / 5.83 / 10.34 / 16.83 km/h | ||
2 reverse: | 1.1 / 3.8 km/h | 1.2 / 4.18 km/h | |||
Rotary Cultivator: | Model: | 1GS9L-60 | |||
Tilling width: | 600 mm | ||||
Blade number: | 18 pcs | ||||
Net Weight: | 500 kg | 505 kg | 515 kg | 525 kg | |
Packing method: | Wooden case / Veneer case / Nude (ship by SKD) | ||||
Packing Size: | 1.16×1.10×1.10 m | ||||
L: radiator cooling system
3. Standard configuration (packing list):
a). Diesel engine and V-belt
b). DF type chassis
c). 1GS9L-60 Rotary Cultivator/Tiller with seat assembly (60cm tilling width)
4. Optional configuration:
a). Radiator cooling;
b). Motor start;
c). As per your requirement.
5. Optional Accessories
20hp power tiller walking tractor hand tractor
Shipment of packed (3 kinds: wooden case, veneer case, steel fram)
Shipment of SKD (semi-knocked down)
1. How to get an accurate quotation?
To get a quotation list, please send inquiry on Alibaba or send email to us directly. The email addresses are shown in the contact detail page.
As we have different models and different implements, please indicate following details in your inquiry email,
a) Output (how many HP) or Model No.
b) Cooling system (evapoative / radiator)
c) Starting method (hand crank / motor start)
d) Order quantity!
These are very important for providing you an accurate and favorable price.
2. What is the minimum order quantity?
Our minimum order quantity is 2 sets in an order, please be sure that your order quantity is at least 2 sets.
3. About the shipment
Usually if you didn't indicate the shipping requirement in the inquiry email, we will quote on FOB price which does't include shipping cost.
If you need us ship the machine to your country, please also tell us the destination port.
Thank you!
Best wishes.
