Home > Products > diesel engine > ZH1115 Diesel Engine

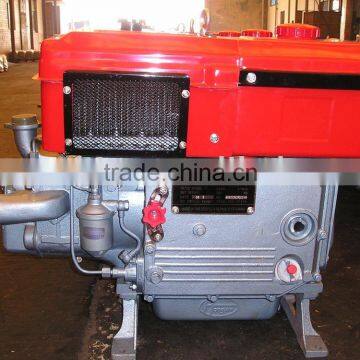

ZH1115 Diesel Engine
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Usage | Other, walking tractor\irrigator\generator\air compressor,etc. | |
| Fuel | Diesel | Stroke | 4 Stroke | |
| Cylinder | Single Cylinder | Cold Style | Other, Water-cooled | |
| Start | Other, electric or recoil | Place of Origin | Jiangsu, China | |
| Brand Name | huiyou | Model Number | ZH1115 . ZH1115NL, ZH1115D , ZH1115ND |
Product Description
Specifications
Small size,Light weightBig power,Low fuel consumption
Stabel performance
Reliable operation
Convenient maintenance,etc.
A. Main applications of the diesel engine:
As a power device used for walking tractor, irrigation and generating sets, air compressor, inland ships, engineering machinery, transportation vehicle and processing machines for agricultural products and sideline products.
B. Detailed description
Model | ZH1115 | ZH1115NL | ZH1115D | ZH1115NLD | ZH1115WP |
Type | Single – cylinder, Horizontal, 4 –cycle | ||||
Combustion System | Direct Injection | ||||
Bore x Stroke (mm) | 115x115 | ||||
Displacement(L) | 1.194 | ||||
Compression Ratio | 17:1 | ||||
Output/Speed(hp/rpm) | 22/2200 | ||||
Max. Output (hp/rpm) | 24/2200 | ||||
Cooling System | Evaporative | Radiator | Evaporative | Radiator | Evaporative |
Lubrication System | Combined pressure and splash | ||||
Starting Method | Hand cranking | Starting motor | Hand cranking | ||
Gross Weight(kg) | 200 | 198 | 214 | 209 | 207 |
Packing Size(LXWXH)(mm) | 900x440x760 | ||||
20’ Container (set) | 96 | ||||
Remark | N-Radiator , D-Starting motor , L-Lamp , WP- Water circulation pump | ||||
