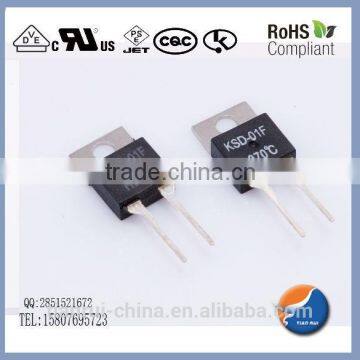

KSD-01F thermostat

A bimetal thermostat/temperature thermostat includes a fixing plate which ha a fixing contact at one end and the other end of which is connected to an external circuit via a first terminal. There is a movable plate which has a movable contact contactable with the fixing contact at one end and the other end of which is connected to an external circuit via a second terminal, also included is a bimetal plate which is deformed when the temperature thereof is increased to a preset predetermined value, thereby deforming the movable plate in the direction such that the movable contact is separated from the fixing contact. The Internal conductive parts (e.g. the fixing and movable plates) are formed of a material having an electrical conductivity of 50%IACS and higher.

 Application:

hair dryers,water heaters,coffee maker,irons, microwave ovens,etc.

KSD301 bimetal thermostat

KSD301 bimetal disc thermostat

1.Rated electrical performance: 250Vac, 5A/7.5A/10A/15A/25A
2.Open temperature: 45 °C ~~ 220 ° C (according to the customers' requirements)
3.Open temperature tolerance: ± 2 ° C; ± 3 ° C; ± 5 ° C; ± 10 ° C; ± 15 ° C.
4.On-off temperature tolerance : 5 to 150 ° C
5.Reset temperature tolerances: ± 2 ° C; ± 3 ° C; ± 5 ° C.
6.Electric Strength: Under the AC50Hz/1800V,it lasts one minute without breakdown flashover phenomenon
7.Insulation resistance: ≥ 100MΩ (DC 500V)
8.Contact resistance: ≤ 50mΩ

9.heat resistance: It is based on the material

10.Life: ≥ 100,000 cycles.
