101s Series China Hydraulic Power Units
- SHANGHAI
- T/T Credit Card
You May Like
-
101S/OSPC Series With Integrated Valve Hydraulic Steering Control Units Used for Boats
-
101S-5/101S-5L/101S-5E Series Modulary Mounting With PVF* Valve Hydraulic Power Steering Control Units
-
YUKEN Pv2r HYDRULIC VANE PUMP
-
TOKIMEC SQP VANE PUMP
-
Vickers VQ Hydraulic Vane Pump
-
VQ SERIES VICKERS VANE PUMP CARTRIGDE KITS
Product Details
| Place of Origin | Jiangsu, China | Brand Name | TPF | |
| Model Number | 101s |
Product Description

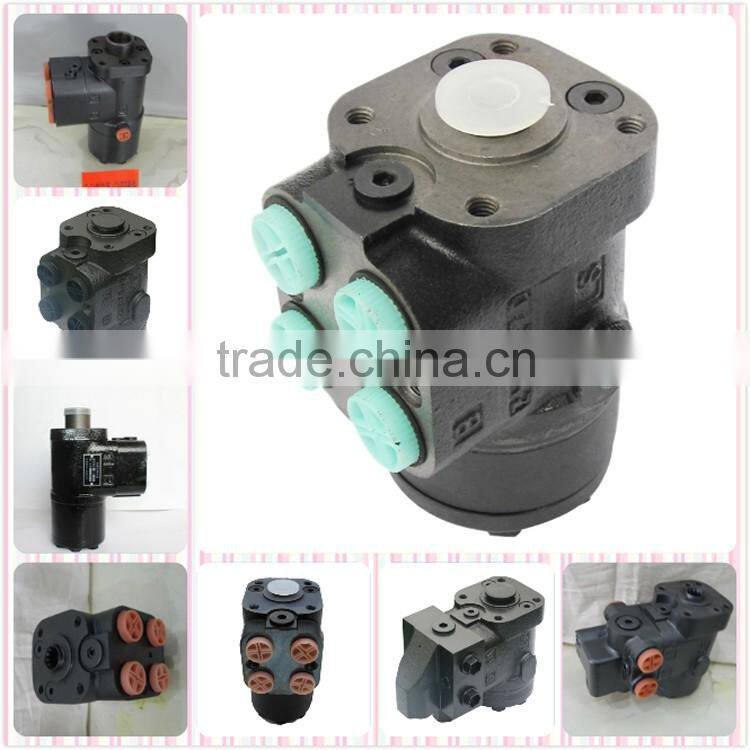

101s series china hydraulic power units
Hydraulic power units , the same function with the 101 series ,include integrated valve ,made it more compact and take each turn quickly and easily for tractors .

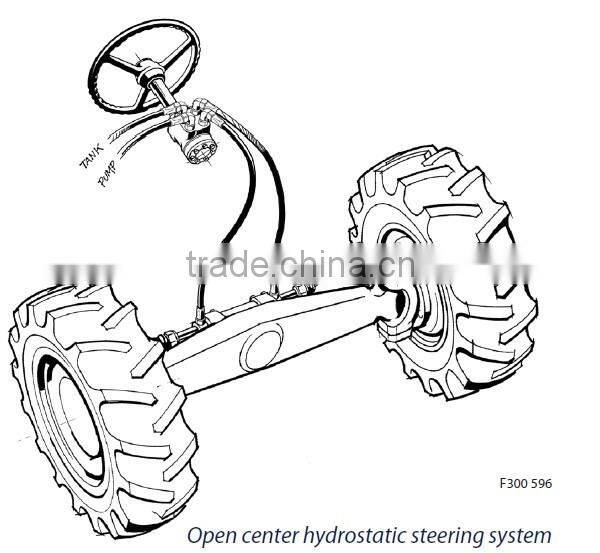

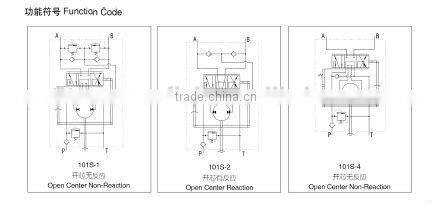

*Steering Types
- 101S-1 - Open Center None Reaction steering system
- 101S-2- Open Center Reaction steering system
- 101S-4 - Open Center None Reaction steering system
Specification:

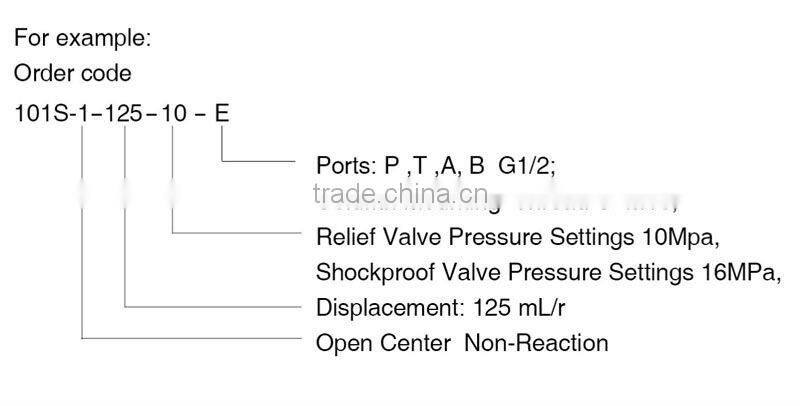

Parameters | Series 101S-*-***-**-* | ||||||||||
Function code | 1,2,4 | 1,4 | |||||||||
Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
Max.input pressure(Mpa) | 16 | ||||||||||
Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
nt.back pressure | 2.5 | ||||||||||
Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |

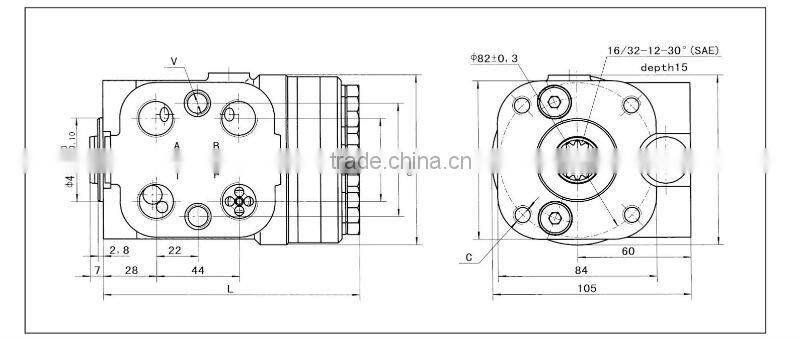

Mounting data
port connection:
Code | P.T.A.B ports | Column mounting C | Valve mounting V |
A | M20*1.5 | M10 | M12 |
B | M20*1.5 O-RING | ||
C | M18*1.5 | ||
D | M18*1.5 O-RING | ||
E | G1/2 | M10*1 | |
U | G1/2 O-RING | ||
M | 3/4-16UNF O-RING | M12 | |
F | 3/8-16UNC | 3/8-24UNC | |
I | M10 | M10 | |
N | M10*1.25 |
