YB-Ea Hydraulic Vane Pump
Negotiable
/ Piece
5 Pieces(Min. Order)
- shanghai
- T/T Money Gram
You May Like
Product Details
| Brand Name | tpf | Model Number | YB-EA | |
| Theory | Rotary Pump | Structure | Other, VANE PUMP | |
| Usage | Oil | Power | Hydraulic | |
| Standard or Nonstandard | Standard | Fuel | Diesel | |
| Pressure | High Pressure | Application | Other, HYDRAULIC |
Product Description
Specifications
YB-Ea hydraulic vane pump1.can replace all series vickers vane pump
2.high pressure and low noise
3.better price
YB-Ea hydraulic vane pump
Technical data:
| Series | Code | Displacement(mL/r) | Flow (L/min) | speed (r/min) | Pressure (MPa) | Weight (Kg) |
| 10V | YB-Ea8 | 8 | 10 | 600-1800 | 16 | 12.5 |
| YB-Ea16 | 17 | 22 | ||||
| YB-Ea25 | 24 | 32 | ||||
| YB-Ea32 | 32 | 43 | ||||
| 20V | YB-Ea40 | 42 | 56 | 16.5 | ||
| YB-Ea50 | 51 | 69 | ||||
| YB-Ea63 | 63 | 84 | ||||
| 30V | YB-Ea80 | 81 | 110 | 24.5 | ||
| YB-Ea100 | 98 | 132 | ||||
| YB-Ea125 | 122 | 164 | ||||
| 40V | YB-Ea160 | 162 | 224 | 38 | ||
| YB-Ea200 | 194 | 267 | ||||
| YB-Ea220 | 212 | 292 | ||||
| 50V | YB-Ea250 | 252 | 347 | 10 | 70 | |
| YB-Ea315 | 316 | 435 | ||||
| YB-Ea355 | 345 | 474 |

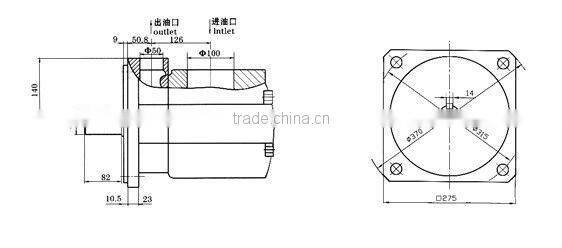

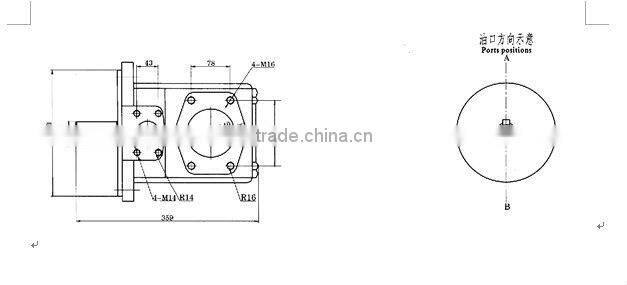

Drawing:
