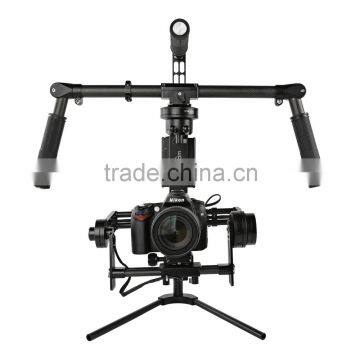

BeStableCam SteadyGim6 PLUS 3 axis handheld gimbal stabilizer for DSLR BMCC GH4 cameras

Descriptions


The ultimate in handheld DSLR stabilization, now with added encoders in all axis for a rock solid performance. Gone are the days with drifting horizon.


CNC machined from aircraft grade aluminum and carbon fiber. The SteadyGim6 PLUS is an easy to use 3-Axis Gimbal that sets up in as little as 3 minutes.The tool-less design gives you the access to make micro adjustments on the film. It supports cameras up to 2.5kg (BMCC,Canon 5D Mark II,Mark III,C300 etc).The

SteadyGim6 PLUS is designed for the most demanding cinema packages. This model has powerful motors, so you can attach a follow focus, matte box, and any extras without worrying if the gimbal can support the extra weight.

Features:


- Ready to use in Handheld Mode

- Batteries can operate up 15 hours when fully charged.

- 4 Operating Modes – Follow, Locked mode, Head Lock, Invert Mode

- Bluetooth control and tuning via Android on both Mac and PC (Option)

- BeStableCam Specialized Gimbal Drive Motors with Encoders

- Brushless motor technology

- LEDs indicate the battery level.

- New Encoder technology is more efficient.

- Metal Aluminium alloy CNC construction & Engineering carbon tubes

- Supports camera/lens combos up to 3,000 grams/3 kg/3.6 lbs

- Supports: BMCC,Canon 5D MarkII,MarkIII,Sony A7 series (400g lens limitations), Pansonic GH3,GH4,NEX series, Lumix Series , BMPCC

- Easy to adjust the center of gravity.

Modes:

Mode 1: Heading Follow Mode – The Camera slowly tracks your movements.

Mode 2: Heading and Pitch Follow Mode – The Camera slowly tracks your movements on pan and tilt axis.

Mode 3: Heading Lock Mode – The operator can‘t move any direction and camera stays locked in one position.

Mode 4: Inverted Mode – An inverted mode can be achieved by flipping the gimbal upside-down directly in any mode any conditions

Mode 5: RC Mode – Capture anything you can imagine with a second operator controlling the camera’s movements as the first operator moves around set.


SteadyGim6 PLUS Mode Operating Steps:


- Turn on the power,the default mode is heading follow mode

- Press the joystick button twice, it is full follow mode.(Heading & Pitch Follow Mode)

- Press the joystick button 3 times, it is lock mode.(Heading & Pitch & Roll Axis Lock Mode)

- Press the joystick button 4 times, RC Model.(Connect the RC control)

- Press the joystick button 5 times, setting roll axis angle manually(manually set to horizon)



SteadyGim6 PLUS manual:

Click here

Videos:

/video14.html

Specifications:

- Weight: 2.5kgs

- Bearing weight: 5kg(camera+lens)

- Camera support: BMCC Canon 5D2, 5D3, 6D, 7D, 60D, Nikon D600, D90, D700, etc

- Camera frame size: <=180mm

- Precision: +/- 0.02 degree

- Power supply: about 6 hours

- Rotation range: pitch(+/-90degree)/roll(+/-60degree)/rotation(+/-360degree)

Supported Camera Dimensions Maximum depth at center of mass on camera base plate: 4.7" / 100 mm

Maximum height measured from top of camera base plate: 7.7" / 220 mm

Maximum width: 6.3" /200 mm


Package included:


1x SteadyGim6 PLUS 3 Axis BMCC DSLR Camera Stabilizer

1x Joystick

1x Gimbal Tuning Stand

1x Battery Pack

1x Battery Charger

1x Hard Case with Preformed Foam Inserts
