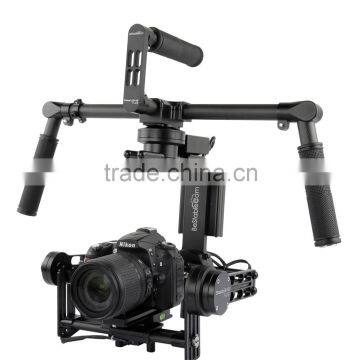

Horizon H6 On Sales Professional Use 3 Axis DSLR Gimbal Stabilizer for DSLR BMCC REd Epic

HORIZON H6:This is new model for SteadyGim6 PLUS,we update the SteadyGim6 PLUS with HORIZON H6,a few new features here is different with SteadyGim6 PLUS.

NEW FEATURES:

-Built-in Frame IMU Current sensor to mesure battery power consumption
-Dedicated 3x SPI/PWM ports for encoder connection
-Additional I2C port to connect 2nd IMU or encoders
-Built-in sound beeper
-Up to 6s LiPo battery is supported
-Come with 2.4G wireless joystick control

Descriptions

The ultimate in handheld DSLR stabilization, now with added encoders in all axis for a rock solid performance. Gone are the days with drifting horizon.

CNC machined from aircraft grade aluminum and carbon fiber. The SteadyGim6 PLUS is an easy to use 3-Axis Gimbal that sets up in as little as 3 minutes. The tool-less design gives you the access to make micro adjustments on the film. It supports cameras up to 3.5kg (BMCC,Canon 5D Mark II,Mark III,C300 etc).The SteadyGim6 PLUS is designed for the most demanding cinema packages. This model has powerful motors, so you can attach a follow focus, matte box, and any extras without worrying if the gimbal can support the extra weight.

Features:

- Ready to use in Handheld Mode
- Batteries can operate up 15 hours when fully charged.
- 4 Operating Modes – Follow, Locked mode, Head Lock, Invert Mode
- Bluetooth control and tuning via Android on both Mac and PC (Option)
- BeStableCam Specialized Gimbal Drive Motors with Encoders
- Brushless motor technology
- LEDs indicate the battery level.
- New Encoder technology is more efficient.
- Metal Aluminium alloy CNC construction & Engineering carbon tubes
- Supports camera/lens combos up to 3,000 grams/3 kg/3.6 lbs
- Supports: BMCC,Canon 5D MarkII,MarkIII,Sony A7 series (400g lens limitations), Pansonic GH3,GH4,NEX series, Lumix Series , BMPCC
- Easy to adjust the center of gravity.

Modes:

Mode 1: Heading Follow Mode – The Camera slowly tracks your movements.
Mode 2: Heading Lock Mode – The operator can‘t move any direction and camera stays locked in one position.
Mode 3: Heading and Pitch Follow Mode – The Camera slowly tracks your movements on pan and tilt axis.
Mode 4: Inverted Mode – An inverted mode can be achieved by flipping the gimbal upside-down in follow mode or you can restart in an inverted mode.

*Modes can also be customized in the software. Other example modes: inverted mode, turn motors off/on, set tilt angles by hand, faster follow mode...An inverted mode can be achieved by flipping the gimbal upside-down in follow mode or you can restart in an inverted mode.

Videos:

/video14.html

Specifications:

- Weight: 2.5kgs
- Bearing weight: 5kg(camera+lens)
- Camera support: BMCC Canon 5D2, 5D3, 6D, 7D, 60D, Nikon D600, D90, D700, etc
- Camera frame size: <=180mm
- Precision: +/- 0.02 degree
- Power supply: about 6 hours
- Rotation range: pitch(+/-90degree)/roll(+/-60degree)/rotation(+/-360degree)

Supported Camera Dimensions Maximum depth at center of mass on camera base plate: 4.7" / 100 mm
Maximum height measured from top of camera base plate: 7.7" / 220 mm
Maximum width: 6.3" /200 mm


Package included:


1x SteadyGim6 PLUS 3 Axis BMCC DSLR Camera Stabilizer
1x Joystick
1x Gimbal Tuning Stand
1x Battery Pack
1x Battery Charger
1x Hard Case with Preformed Foam Inserts

NOTE: Please be noted that the Camera is not included

*Although the SteadyGim6 PLUS is tested with a camera before shipping, it does not come pre-tuned or balanced for your specific camera setup. Customers will be responsible for tuning and balancing their camera. We can provide example profiles upon request.
