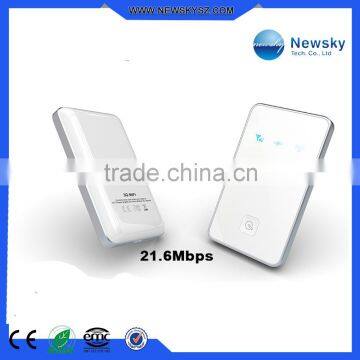

High quality 3g hspa+ wireless router wifi hotspot

Operating Frequency

Ÿ HSPA/UMTS2100MHz: 1920MHz~1980MHz(Uplink)/2110MHz~2170MHz(Downlink)

Ÿ HSPA/UMTS1900MHz:

1850MHz~1910MHz(Uplink)/1930MHz~1990MHz(Downlink)

Ÿ HSPA/UMTS850MHz:

824MHz~849MHz(Uplink)/869MHz~894MHz(Downlink)

Ÿ GSM/GPRS/EDGE 850MHz:

824MHz~849MHz(Uplink)/869MHz~894MHz(Downlink)

Ÿ GSM/GPRS/EDGE900MHz: 880MHz~915MHz(Uplink)/925MHz~960MHz(Downlink)

Ÿ GSM/GPRS/EDGE1800MHz: 1710MHz~1785MHz(Uplink)/1805MHz~1880MHz(Downlink)

Ÿ GSM/GPRS/EDGE1900MHz: 1850MHz~1910MHz(Uplink)/1930MHz~1990MHz(Downlink)

Network Supported

HSPA/UMTS 2100/1900/850 MHz (Rx Diversity in WCDMA2100MHz)

GSM/GPRS/EDGE 850/900/1800/1900MHz

Power Class

UMTS/HSPA 2100MHz: +24dBm +1/-3dB (Power Class 3)

UMTS/HSPA 1900MHz:+24dBm +1/-3dB (Power Class 3)

UMTS/HSPA 850MHz: +24dBm +1/-3dB (Power Class 3)

GSM/GPRS 850/900MHz: +33dBm +/-2dB (Power Class 4 )

GSM/GPRS 1800/1900MHz: +30dBm +/-2dB (Power Class 1 )

EDGE 900MHz: +27dBm (Power Class E2)

EDGE 1800/1900MHz: +26dBm (Power Class E2)

Maximum Power Consumption

WLAN power: 11±1.5dBm(with battery in 10m)

* In theory, up to 30m coverage with the adaptor

Antenna

Internal antenna

Internal diversity antenna

Internal WiFi antenna

Internal GPS antenna (optinal)

Software Specifications

Data Service

HSPA+  DL 21.6Mbps  UL 5.76 Mbps

HSPA+   DL14.4 Mbps  UL 5.76Mbps

HSPA    DL 7.2Mbps  UL 5.76 Mbps

UMTS    DL/UL 384 kbps

GPRS    DL 85.6 kbps / UL 42.8 kbps

EDGE    3GPP R4, Category 12, DL 237k bps / UL 118K bps

Short Message Service

SMS receive/send

Phone book business

Client

Auto-run PC application

Web setting client

Software Installation

Auto installation of PC suite and driver

WiFi users management

Add/reduce the WiFi users

others

PIN management

Language setting

Automatically or Manually network register

Profile management

File sharing

Interface Specifications

USB

Standard Micro USB

SIM/USIM Card Slot

Standard 6-pin SIM card interface, in line with the 3GPP31.101 and 31.102

Battery

Capacity: 1500mAh

Removable, rechargeable Li-lon battery

Up to 5hrs continuous, 150hrs standby

LED Indicator

Power: blue solid ----- hotpot working

       Red blinking ---- low battery

       Red solid ----- charging

3G signal: blue solid ---- 3G signal covered

         blue blinking ---- signal transferring

WiFi signal: blue solid ---- WiFi power on

           blue blinking ---- WiFi users accessing

Adaptor

5V, 1A(TBD)

T-Flash Card Slot

Maximum Capacity: 32G
