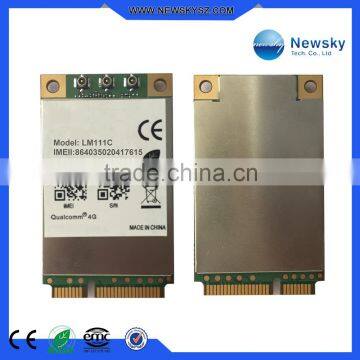

General Features   for  3g modem module

•  TDD LTE:Band38/ Band39/Band40/ Band41
• FDD LTE: Band1/ Band3/Band7/Band8
• Penta-band : DC-HSPA+/HSPA+/HSPA/UMTSB1/B2/B5/B8
• Quad-band: EDGE/ GPRS/GSM1900/1800/900/850 CDMA/EVDO BC0
• Receive diversity: LTE/DC-HSPA+/HSPA+/HSPA/UMTSB1/B2/B5/B8/ EVDO
• MIMO LTE: DL 2*2 MIMO
• Transmitter power
• WCDMA/HSPA+ : +24dBm (PowerClass 3)
• GSM/GPRS 1900MHz/1800MHz: +30dBm (PowerClass 1) GSM/GPRS900M/850MHz: +33dBm (Power Class 4) EDGE 1900MHz/1800MHz: +26dBm (PowerClass E2) EDGE 900M/850MHz:+27dBm (Power Class E2)
• LTE:Accorded with 3GPPTS 36.101R8+23dBm(Power Class 3) CDMABC0: +23 dBm(Power Class 3)
• Control via AT commands: 3GPP TS 27.007and TS 27.005;WOSIN extendedAT command
• SIM card supply voltage: 1.8V to 3.0 V UICC (SIM/UICC/UIM), ISIM supported
•  Supply voltage range: Normal: 3.2 to 4.2V (typical:3.6 V)
• Temperature range: Normal operation: -10°C to+60°C
• Extended operation: -20°C to +70°C Storage: -40°C to+85°C
•  Humidity: 5% - 95%
•  Dimensions: 50 mm x 31 mm x 4.2 mm
•  Weight: <15g
• OS: Win2000/ XP/VISTA,VISTA32/64,Windows 7,Windows 8 Linux2.4/Linux2.6/Android2.3 above

Interfaces    for  3g modem module

• Antenna interfaces x 2
• PCI ExpressMini Card InterfaceUSB 2.0 interface highspeed Power supply
• UICC interface
• UART
• I2C

AdditionalFeatures    for  3g modem module

• Sleep wake-up

•   IPV4

•  PCM

• SIM Hotswap

• BodySAR

DataFeatures  for  3g modem module

• 1x: UL (153.6 kbps)/DL (153.6 kbps)
• EVDO Rev.A: UL (1.8 Mbps) /DL(3.1 Mbps)
• GPRS/EDGE: Multi-slot Class 12
• WCDMA PS: UL (384 kbps)/ DL (384 kbps)
• DC-HSPA+ :UL (5.76 Mbps)/ DL (42 Mbps)
• LTE TDD: UL 17 Mbps/ DL 68Mbps @Bandwidth 20M cat3
• LTE FDD: UL 50 Mbps/ DL100Mbps @Bandwidth 20M cat3

SMSFeatures   for  3g modem module

• Supporting MO and MT
• Supporting formats ofPDU
• Point-to-point andcell broadcast

Approvals   for  3g modem module

• CCC
• FCC
• CE
• RoHS

Attention   for  3g modem module

Please refer to the latest version of Hardware Guide about the that serves the right to make changes or improvements to any to the products without prior notice
