Post Tension Anchorage Head anchorage wedges for concrete pretension work
- TIANJIN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Prestressing Flat Anchorage for bridge concrete construction
-
Prestressed Multi-stand Anchorage head for PC strand in construction
-
Prestressed Multi-holes Galvanized Anchorage for PC strand
-
prestressed tension(stretching) multi-hole anchorage for 15.24 PC strand
-
Mining Dome Barrel and Wedge for PCstrand
-
prestressed tension(stretching) multi-hole prestressing anchor grape for 15.24 PC strand
Product Details
Place of Origin | Tianjin, China | Brand Name | ZH, ZH | |
Model Number | 20CrMnTi, ZH13 / ZH15 | Material | Other, alloy steel |
Product Description
1. Specification: for 12.7mm or 15.24mm pc strand
2. Model: ZH13 or ZH15

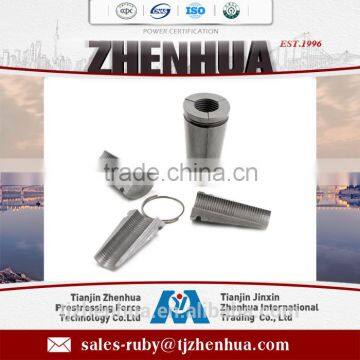

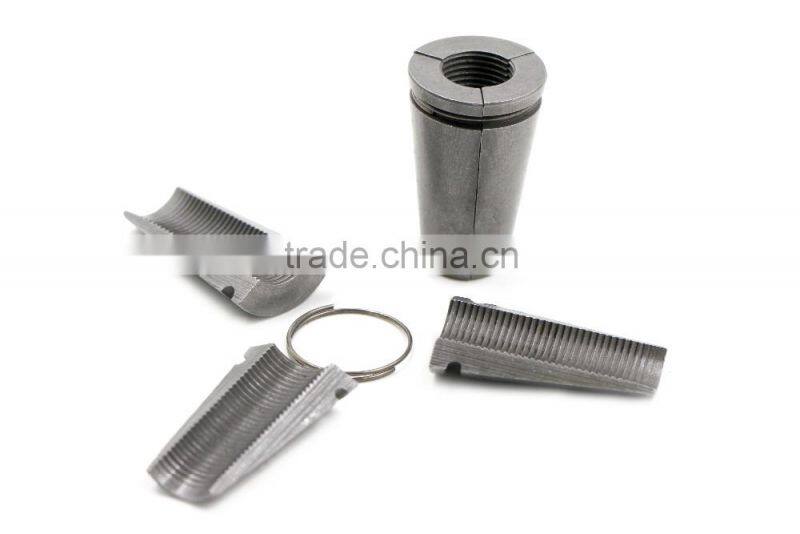

3. Type:2 pcs per pair
4. Certification: ISO9001:2008
5. 1 pair contains 2 pieces and 1 rubber ring
:
STRAND NO | ANCHOR BOLSTER A×B×φC | CORRUAGTED PIPE INNER DIAMETER φD | ANCHORAGE φE×F | SPIRAL BAR | ANCHOR BOLSTER | SUPPORTING MODLE TENSION | ||
φG×φH×1 | CIRCLE | INSTALL HOLE | INSTALL HOLE | |||||
1 | φ46×45 φ43×45 | DC250Q YDC250Q | ||||||
2 | φ83×45 φ73×45 | YCW100B YCW100B | ||||||
3 | φ135×85×66 φ130×80×63 | φ50 φ50 | φ87×45 φ78×45 | φ130×φ10×50 φ130×φ10×50 | 4 4 | φ112.5 φ110 | M10 | YCW100B YCW100B |
4 | φ136×100×66 φ136×95×68 | φ55 φ50 | φ93×50 φ87×48 | φ140×φ10×50 φ136×φ10×50 | 4 4 | φ115 φ115 | M10 | YCW100B YCW100B |
5 | φ146×120×71 φ146×120×73 | φ55 φ50 | φ103×50 φ97×48 | φ152×φ10×50 φ146×φ10×50 | 4 4 | φ126 φ126 | M10 | YCW150B YCW100B |
6 | φ164×135×80 φ155×120×77.5 | φ70 φ60 | φ117×50 φ107×48 | φ170×φ12×50 φ155×φ12×50 | 4 4 | φ140 φ135 | M10 | YCW150B YCW100B |
7 | φ164×135×80 φ155×120×77.5 | φ70 φ60 | φ117×50 φ107×50 | φ170×φ12×50 φ155×φ12×50 | 4 4 | φ140 φ135 | M10 | YCW250B YCW150B |
8 | φ176×150×85 φ167×140×81 | φ80 φ70 | φ127×52 φ117×50 | φ180×φ14×50 φ167×φ12×50 | 5 4 | φ153 φ146 | M10 | YCW250B YCW150B |
9 | φ185×150×90 φ175×150×88 | φ80 φ70 | φ137×52 φ127×50 | φ180×φ14×50 φ175×φ12×50 | 5 4 | φ162 φ154 | M10 | YCW250B YCW150B |
great quality best prestress anchorage wedges for pretension work
It includes some parts like limit board and anchor plate etc.
Its Hardness of manufacturer of industry wedge
work anchorage head and limit board: 25~4033HRC (306 HBS) work gripper :78~86HRA
Matched tensioning device manufacturer of industry wedge :
YCQQ series jack, ZB4-500 hydraulic pump
Heat treatment specification of manufacturer of industry wedge :
ISO9001 - 2008 & JB/T3999-1999
(Carburizing or carbonitriding and post–quenching and tempering of steel part)
During the Heat treatment permeability, nitriding, quenching, tempering process , The computer control process parameters of multi-purpose furnace, and set up quality control points according to the requirements of ISO9001 - 2008 quality assurance system, after heat treatment ,the hardness, tooth type, appearance have to pass a rigid thoroughly inspection, to ensure high qualified products.
All the procedure was controlled by a computer according to JB/T3999-1999
