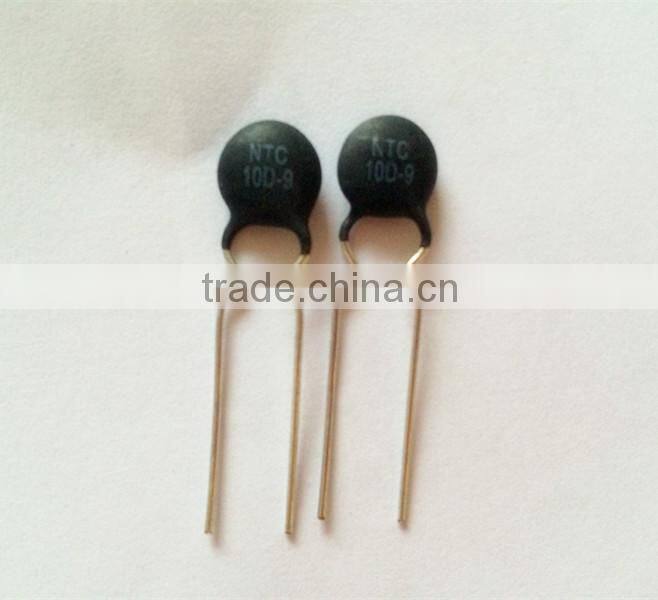

NTC Thermistor Power Limit Current Limit Resistor Surge Arrestor 10D9 10ohm Ntc Temperature Sensor 9mm Diameter Sensor

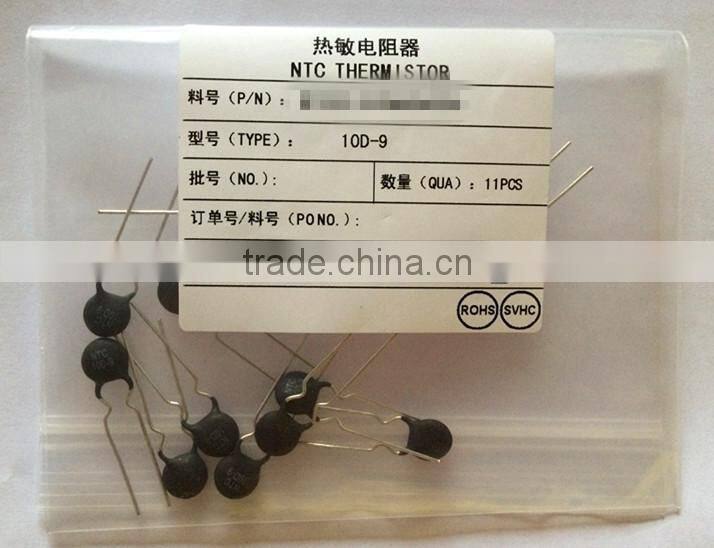

Electronic components- NTC thermistor MF72 10D9 1000pcs/bag

Thermistor-A thermistor is a type of resistor whose resistance varies significantly with temperature, more so than in standard resistors. The word is a portmanteau of thermal and resistor. Thermistors are widely used as inrush current limiter, temperature sensors (NTC type typically), self-resetting overcurrent protectors, and self-regulating heating elements.
Thermistor differ from resistance temperature detectors (RTDs) in that the material used in a thermistor is generally a ceramic or polymer, while RTDs use pure metals. The temperature response is also different; RTDs are useful over larger temperature ranges.
Thermistor can be classified into two types, depending on the classification of k. If k is positive, the resistance increases with increasing temperature, and the device is called a positive temperature coefficient (PTC) thermistor, or posistor. If k is negative, the resistance decreases with increasing temperature, and the device is called a negative temperature coefficient (NTC) thermistor.
Resistors that are not thermistors are designed to have a k as close to 0 as possible, so that their resistance remains nearly constant over a wide temperature range.

Dimension:

D=Max.10.5mm L=Min.25mm F=7.5mm+/-1.0mm T=Max.5mm d=0.78+/-0.06mm
Material:
Coating: Phenolic resin
Lead wire: CP lead wire
Coating color: Black
