DS-H44 OEM Heat Exchanger Weld

Specifications

We can make according to your requirements!

DS-H44 OEM heat exchanger weld

Introduction

We are plate heat exchanger manufacturer. Plate heat exchanger consists of a set of corrugated

metal plates, plate with a hole for the heat transfer fluid through the two metal plates mounted on a side pressed by the fixed plate and activities within the framework of the board, and with clamping bolt clamping. Plate is equipped with a gasket, sealing the fluid channel and guide the fluid to flow alternately to each channel. Fluid to flow, physical properties,

pressure drop and temperature difference determines the existence of discrete plate number and size.

Corrugated board not only improve the flow degrees, and the formation of a number of support points,

enough to withstand the pressure difference between the media.

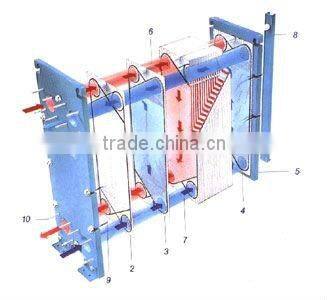

Structure

1,fixed pressure; 2, forestand plate; 3, heatexchanger plate; 4, back head; 5, movable pressureplate;

6, top guide bar 7, under guide bar; 8, rear pillar; 9, fish bolt; 10, connector

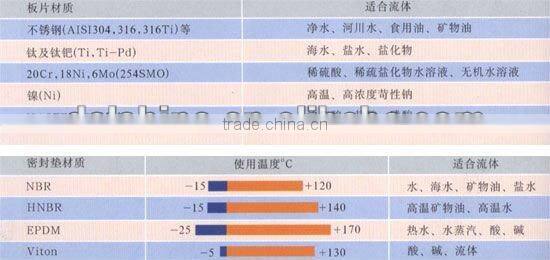

Material of plate and gasket seal

A. Plate material (all plank both by the electrolytic polishing processing)

Stainless steel: A1S1, 304SS(1.4301); A1S1, 316SS (1.4401); A1S1, 316T1 (1.4571)
Titanium Edition
Platinum Hastelloy Hastelloy
a special stainless steel SMO254
alloy UNS N08904 (1.4539)

B. Gasket material
NBR (NBR, H-NBR)
EPDM rubber (EPDM, RPDM-NT, EPDM-HT)
Viton (FPM)
chloroprene rubber (CR)
Special rubber (Viton, Buty1, PTFE-Covered, etc.)

Framework material and interface material

A.Framework Material
painting steel
Stainless steel
B.Interface Material
Standard: NBR NBR, EPDM rubber EPDM, stainless steel A1S1 316
Special: alloy steel SMO254, Hastelloy Hastelloy Titanium Titanium Platinum

Series

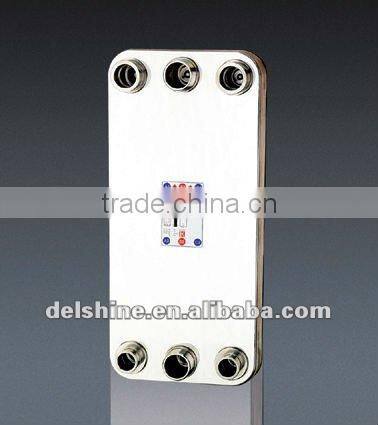

Brazed plate heat exchanger

Detachable plate heat exchanger

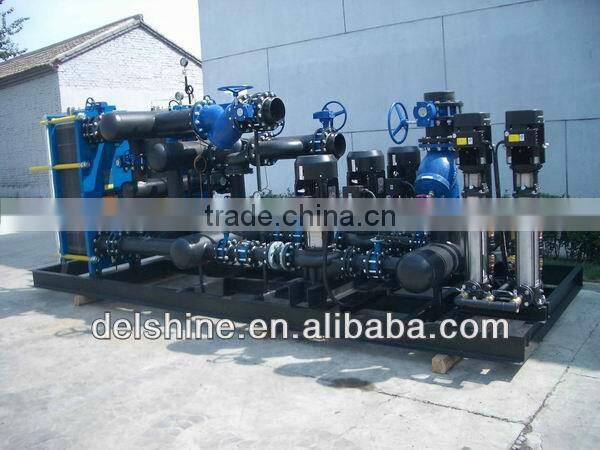

Heating system

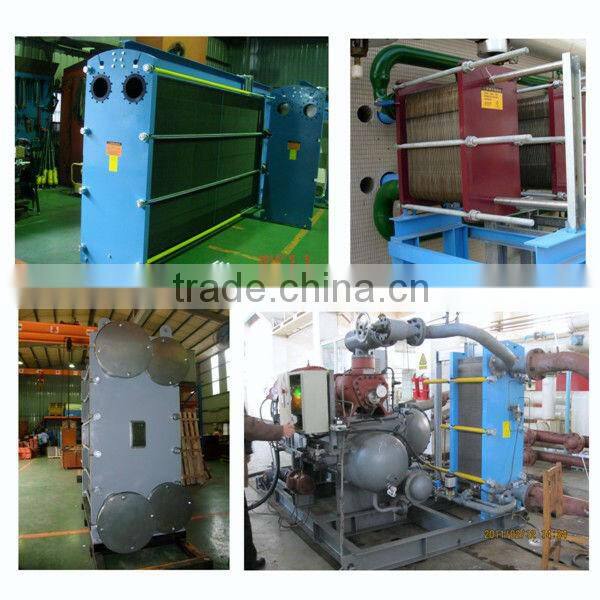

Production

Certification
