Polyurethane PU Sandwich Panel Machine Line Prices
- 5 Set / Sets per Month
- Ningbo / Shanghai
- T/T
You May Like
Product Details
| Brand Name | DS | Model Number | DSPU-PL01 |
Product Description
Specifications
sandwich panel machine line prices1.OEM;
2.Reliable control.
3.Better extensibility;
4.Leading technologies;

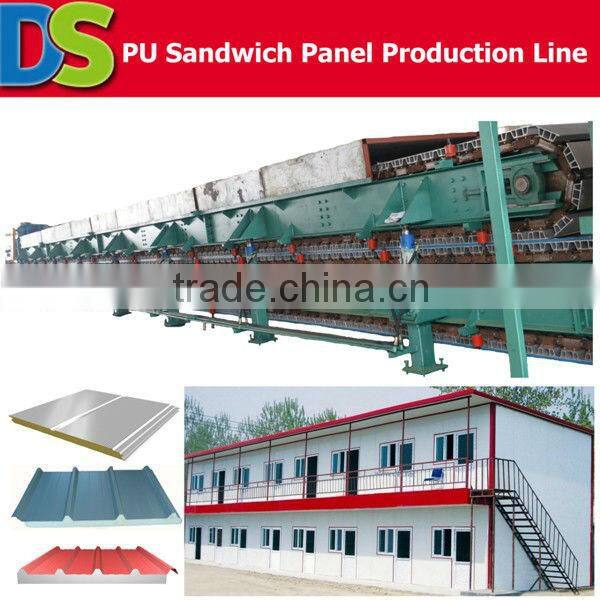

Polyurethane PU Sandwich Panel Machine Line Prices

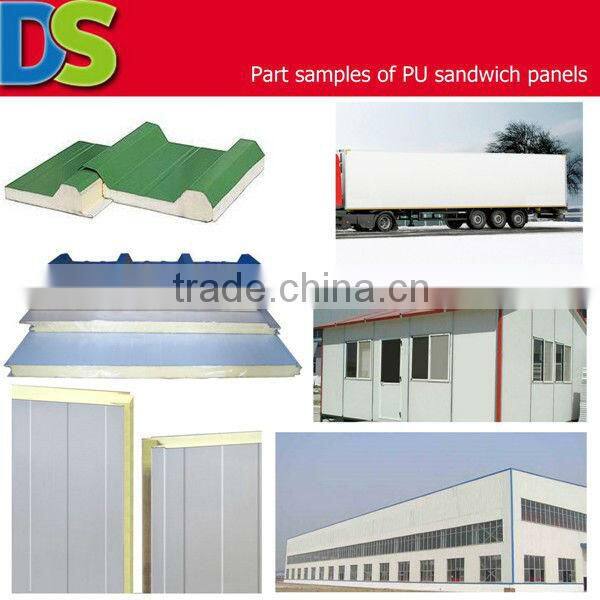

Relation products from these machines
Machne Components and Features
Uncoiler,coil molding machine, preheat roller bed, foaming machine, distribution machine, double crawler type conveyor, sizing cutting machine, roller bed and so on.
Better extensibility: It will have ability to produce two side color sheet sandwich panel, color sheet and soft surface sandwich panel,
Leading technologies: The whole line adopts and upgrades European technology design proposal,reduces cost. It is especially suitable for new or small company.
Reliable control: Whole control system is made of PLC, Weinview touch screen, Autonics detecting switch, delta convertor and other element.
Machine Parameter
Total power | 120 Kw | Line dimensions | 24000x2200x2800mm |
Heating power | 50Kw | Line weight | 25 Ton |
Panel width | 400-1200mm | Line speed | Max.12 m/min |
Panel thickness | 20-100mm | Belt conveyor length | 24m |
Panel density | 45-60 Kg/m3 | Belt conveyor length | 24m |
Max. Width of panel | 1200mm | Belt conveyor heating | 60°C |
Production thickness | 20,30,50,60,100mm | Sizing cutting speed | Max. 12 m/min |
Production speed | 3-6 m/min | Cutting length | 2-6 m |
Line capacity | 1 million m2 / year | Cutting error | ±5mm |
Machine Processing
Warranty and After-Sale Service of Machines
1. One year warranty.
2.The on-site installation and testing service can be supplied via paid service .
