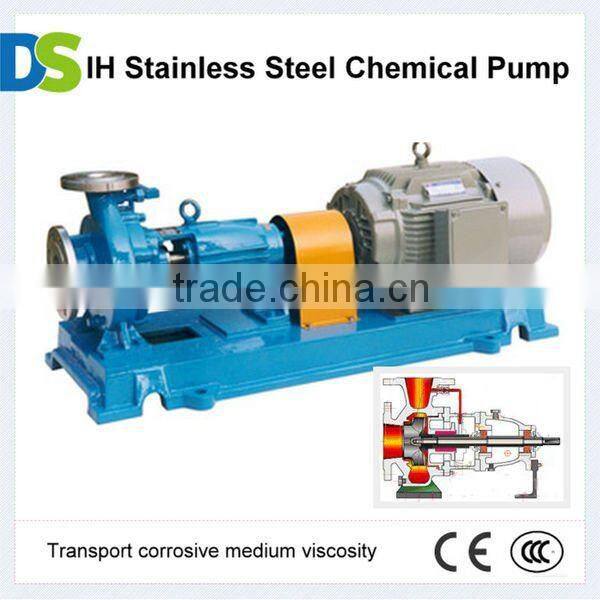

IH Stainless Steel Centrifugal Chemical Pump
- ShangHai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | D&S | |
| Model Number | IH | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Other, synthetic fiber industry, transport corrosive medium viscosity. etc | |
| Power | Other, Electric, 0.55-75KW | Standard or Nonstandard | Standard | |
| Fuel | Other | Pressure | Low Pressure | |
| Application | Other, synthetic fiber industry, transport corrosive medium viscosity. etc |
Product Description
Specifications
- Pump arbitrary strength of the acid- Completely sealed
- Customize
- Fast delivery
Working Condition:
Flow:6.3-400m3/h
Head:5-125m
Impller D:125-400mm
Inlet D:50-200mm
Outlet D:32-150mm
Power:0.55-75KW
Application
This product is widely used in: chemical industry, metallurgy, power generation, petroleum, paper, food, pharmaceuticals, synthetic fiber industry, transport corrosive medium viscosity.
Temperature: -20 ° C to 95 ° C.
Design Features
IH-type centrifugal pump designed according to international standards, the pump impeller pump cover wetted parts are used ZG1Cr18Ni9Ti.
System uses built-in sense of mechanical seals, static ring use silicon carbide, graphite filled PTFE ring the use of materials, corrosion-resistant sealing.
No. | Item | Material |
1 | Pump Body | ZG1Cr18Ni9Ti |
2 | Ring | ZG1Cr18Ni9Ti |
3 | Impller | ZG1Cr18Ni9Ti |
4 | Pump Cover | ZG1Cr18Ni9Ti |
5 | Mechanical seal | PTFE, alumina, silicon carbide, carbide |
6 | Stand | HT200 |
7 | Shaft | 1Cr18Ni9Ti |
8 | Base | HT200 |
