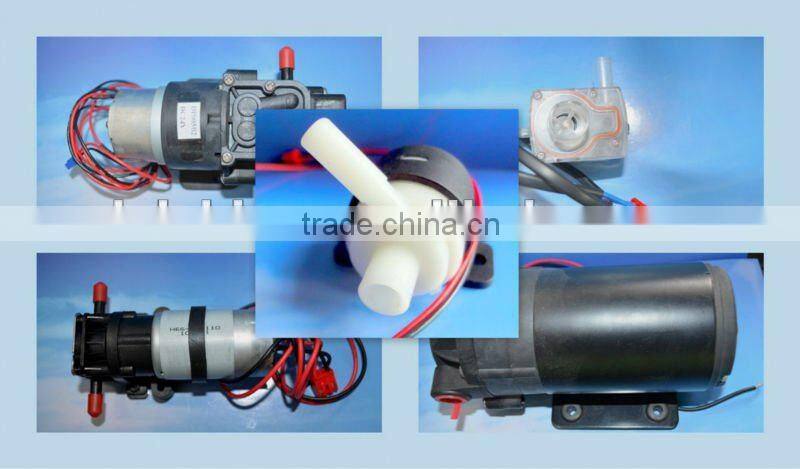

DC/AC Centrifugal Micro Pump

Specifications

Technical data

Voltage:12VDC/24VDC/220VAC

Max. fluid Temperature:80 °C

Duty Cycle: Intermittent

Unit Size: 35*25.5*36mm

Port Size: 34*Ø4mm

Inlet Size: Ø9.5mm  Ø6.5mm

Outlet Size: Ø6.5mm  Ø3mm

Working life: condition working above 20000Hs

Applicable Liquid: water, oil or solution between PH 4-10

Following datas base on test by water

Brushless motor
Submersible pumps

Fully good grade material
Body:POM -- food grade
magnet material:
The motor part is the food grade POM material. There are circuit boards and core materials (silicon steel). Intermediate magnetic part is the impeller rotor,
material is BNM6 Send Ruilin / external charger 4-pole circle method magnet.
O-ring material
White O-ring material: White silicone food grade. No odor(No smell).
Red O-ring material: Red silicone food grade. No odor(No smell).
Max. fluid Temperature:100 °C

Application

Instant water kettle, Coffee maker, Water dispenser, Beverage equipment, Mini fountain,etc.

Scope of application

- This series products are widely supplied in universal equipments, medical equipments, chemical equipments, agriculture (lawn and garden), tourism vehicles, special purpose vehicles, ships, beverage equipments, car cleaning,

- carpet cleaning, floor cleaning, water purifier and treatment.

- Provide water for washing, taking bath, toilet and flushing on vehicles, ships and crafts etc.

- Transfer, distribute and feed liquid in food and beverage processing and treatment equipments.

- Water for household, such as water economizing washing room, water economizing ciosestool, electric close stool and water pipe pressurize using system etc.

- Solar energy industry.

- Water puritying industry, such as water treatment equipments, water dispenser and water purifiet etc.

- Other equipments and systems which requires to transfer, jet or measure liquid, such as electric pesticide sprayer, garbage truck, sprinkler, carpet cleaning equipments , floor cleaning equipments, vehicle cleaning equipments, road construction equipment, dish washer, medical instruments, chemistry equipments, vehicle cleaning equipments, sterilize equipments, cooling system and pressurize system etc.

Parameter
