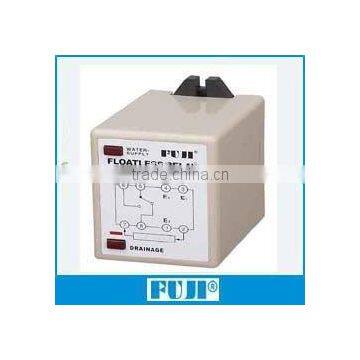

China Supplier Liquid Floatless Level Control relay AFR-1

FOB Price

USD $2.85 - $3.35 / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Classification		Floatless Level Switch Relay
Specification Model		AFR-1	AFS-GR	PM61F-GR	61F-GP-N	61F-G
Dimension (mm)		61H × 49W × 70D	50H × 40W × 58D	50H × 40W × 58D	50H × 40W × 70D	79.5H × 84W × 127D
Socket Type		PS-08 PF-083A(E)	PF083A(E)	PF083A(E)	PF113A(E)	-
Sensing Mode	General	AFR-1	-	-	-	61F-G
	High Sensing	AFR-1H	-	-	-	-
	Long Distance	AFR-1L	-	-	-	-
	Low Density	AFR-1D	-	-	-	-
	Two Lines	AFR-1R	AFS-GR	PM61F-GR	61F-GP-N	-
Rated Voltage		AC: 110V, 220V, 240 50/60Hz
Indicator Operating		Two LED's use for two status
Operate Voltage		85~110% of rated voltage
Second Voltage		8VAC (except high sensing 24VAC)
Operate Resistance		4K min.(GENERAL)
Release Resistance		15K min.(GENERAL)
Response Time		Operate: 80msec max, Release: 160 msec max.
Contact Rating		5A, 250VAC(RESISTIVE LOAD)
Length of Cable		1Km max.(GENERAL)
Life	Mechanical	5 × 106 times min
Life	Electrical	105 times min
Insulation Resistance		100M (DC 500V)min
Dielectric Strength		1500VAC, 50/60Hz, for 1 minute
Consumed Power		3.2VA
Ambient Temperature		-10oC~+55oC
Ambient Humidity		45~85%RH
Weight		200g	150g	150g	150g	380g
