Home > Products > Relay > HH52P 8 Pin 24v relay AC Coil High Quality MY2NJ General Purpose Relay 2NO+2NC Led Relay

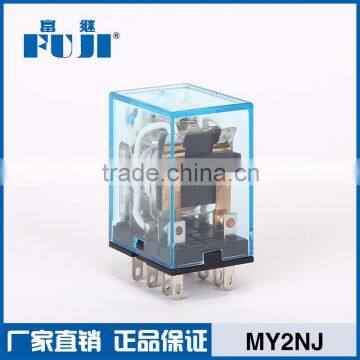

HH52P 8 Pin 24v relay AC Coil High Quality MY2NJ General Purpose Relay 2NO+2NC Led Relay
- 20000 Piece / Pieces per Month
- Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
China supplier General Purpose Relays JQX-13F-2Z PCB Relay
-
Power Relay JQX-60F 1Z 60A automation Relay,PCB relay with high quality
-
14 Pin Electric General Purpose Power Relay MY4(HH54P)
-
Hot Sale Digital Timer Relay JSS48A-S(DH48S-S)
-
General Purpose Electromagnetic Relay 60.12
-
General Purpose Electromagnetic Relay 60.13
Product Details
| Place of Origin | Zhejiang, China | Brand Name | FUJI | |
| Model Number | MY2NJ | Theory | Electromagnetic Relay | |
| Usage | General Purpose | Size | Miniature | |
| Protect Feature | Other, Sealed, Epoxy | Contact Load | Low Power |
Product Description
HH52P 8 Pin 24v relay AC Coil High Quality MY2NJ General Purpose Relay 2NO+2NC Led Relay
Technical Data
Product Model | HH52P (MY2NJ) | ||
Outline Dimension(L×W×H) (mm) | 27.5×21×35.5(mm) | ||
Contact Form | 2Z,2C | ||
Initial Contact Resistance | 50mΩ (1A 6VDC) | ||
Coil Voltage | 5VDC~110VDC; 6VAC~240VAC | ||
Operate Time (at nomi. Volt) | 25ms | ||
Release Time (at nomi. Volt) | 25ms | ||
Coil Power(W) | 0.9W, AC:1.2VA | ||
Contact Rating | 5A 250VAC/30VDC | ||
Insulation Resistance | 1000MΩ,500VDC | ||
Dielectric Strengh | Between Open Contact | 1000VAC 1min. | |
Between Coil and Contact | 1500VAC 1min. | ||
Electrical Life | 1×105 | ||
Mechanical Life | 1×107 | ||
Max. Switching Voltage | 250VAC/30VDC | ||
Max. Switching Current | 7A | ||
Max. Switching Power | 210W/1750VA | ||
Impact Resistance | Stability 100m/s2 Intensity 1000m/s2 | ||
Humidity | 98% R.H.+40% | ||
Temperature Range | -55~+70°C | ||
Vibration Resistance | 1mm 50~55Hz | ||
Construction | Dust vover | ||
Suitable socket:PYF08A
Packaging Details: | standard export carton box |
Delivery Detail: | 15-25 days after confirm the order |
