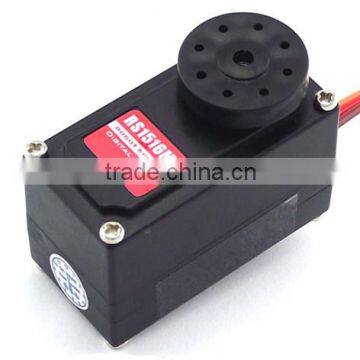

RS1516MD Metal Gear 15kg low profile 360degree Robotics Servo

RS1516MD Metal Gear 15kg low profile 360degree Robotics Servo

Features:

High presicion titanium alloy gears made by CNC;

Select torque motor,could compare with import one;

1million life Potentiometer;

expert and experienced in circuit for 8 years;

TOP choice on case plastic,and best mold manufacture

Futaba,JR,SANWA,Hitec compatible.

Waterproof

Specifications Figure:

Specifications:

                   Item No.RS1516MD

Operating Voltage:        5.5V~7.4V

Speed:                              0.25 sec/60deg (6v)  0.23sec/60deg (7.4v)

Locked-Rotor Torque:    14.4kg.cm (6v)  16.5kg.cm (7.4v)   (Note:need UBEC if use 2S Lipo)

Size:                                  44mmX23mmX26.5mm

Weight:                             51gram

Motor:                               3 pole Core motor

Gear Train:                      Metal(Titanium gear)

Ball Bearing:                   2BB

Dead band width:          2usc

Interface:                          (JR)

Wire length:                    30cm

Type:                                Digital,low profile

Rotation angle:              360degree continuous rotation(PWM500-2500us),when 1000 -1500us,the far to 1500us,servo turn faster,when 1500us -2000us,the far from 1500us,servo turn faster

Product View:

Important Notes:

*Please specify the plug(JR or Futaba connector),or we offer JR plug for you,for it is compatible.Futaba plug.
*Please do read the instruction before you install the servo.Rubber grommet must be used to reduce vibration when you install the servo on GP airplane,GP car or GP boat.
*Please choose suitable servo for you rc model.Torque overload will damage your servo.
*Keep the servo clean and away from dust,corrosive gas and humid air.
*Specification are subject to change without notice

Packing include:

     1pcs x RS1516MD  servo

     GW: 70 g

Packing:

Certificate:
