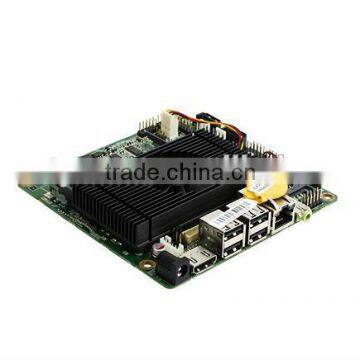

Nano-ITX Motherboard AMD Fusion APU T48N/T56N Duo Core DS-2018 Single Board Computer
Negotiable
/ Piece
2 Pieces(Min.Order)
- Credit Card
You May Like
-
3.5" Intel Atom Cedar Trail N2600/2800 CPU Fanless Single Board Computer ENC-5891 SBC
-
Fanless Intel Atom D2550 Duo Core Mini-ITX Motherboard GMX-IL1916 Single Board Computer
-
AMD APU T40e PC/104 Embedded Motherboard ENC-5850 Single Board Computer
-
AMD Kabini G-SOC 2.0/2.4GHz Duo Core / Quad core APU Nano-ITX Motherboard DS-2019 Single Board Computer
-
AMD LX800 PC104 Motherboard ENC-5800 sinlgle board computers
-
Fanless Single board computers ENC-LX800 embedded boards
Product Details
| Products Status | Stock | Application | Other, digital signage | |
| Chipset Manufacturer | AMD | Form Factor | Other, 12cm*12cm | |
| Memory Type | DDR3 | Graphics Card Type | Integrated | |
| Hard Drive Interface | IDE, SATA | FSB / HT | 1.6 GHz | |
| Brand Name | YACOO | Model Number | DS-2018 | |
| Place of Origin | Guangdong, China |
Product Description
Characteristics:
Dimensions:12*12cm ; Dual Display: CRT + LVDS, CRT + HDMI, LVDS + HDMI . Support 3G
| Processor | CPU | AMD®G series APU T56N - 1.65GHz /T48N - 1.4GHz |
| CPU Package | Onboard | |
| FSB | 800/1066/1333MHz | |
| Chipset | AMD® eBrazos + Hudson - M1 | |
| BIOS | AMI EFI BIOS | |
| Memory | Architecture | Dual channel DDR3 800 / 1066 / 1333MHz FSB |
| Capacity | Max. 4GB | |
| Socket | 1*204pin SO-DIMM socket | |
| Display | Graphic Controller | AMD® RadeonTM HD6 series, support DirectX® 11 |
| LVDS | Support dual channel 18/24 bit | |
| Max. resolution: 1920 * 1200 (support 1080P) | ||
| VGA | Onboard pin headers | |
| Max. resolution: 2560 * 1600 | ||
| HDMI | Support HDMI 1.3A type, 19 pin | |
| Max. resolution: 2560 * 1600 | ||
| Display Port | N/A | |
| N/A | ||
| Dual Display | CRT + LVDS, CRT + HDMI, LVDS + HDMI | |
| LAN | Controller | LAN1: Realtek 8111E GbE Lan |
| LAN 2: N/A | ||
| Audio | Controller | Realtek ALC662 HDaudio decoder (left&right channel + Mic) Max. amplifier output: 6W |
| Super I/O | Controller | ITE IT8728F |
| H/W Monitor | Watch Dog Timer | Timer1-C8255 sec./min., Support system reset |
| Fan | DC Fan | |
| TPM | Controller | N/A |
| I/O | USB | 8* USB 2.0 / 1.1 compatible |
| Serial Port | 2* RS-232 | |
| Parallel Port | N/A | |
| PS/2 | N/A | |
| GPIO | N/A | |
| IEEE 1394 | N/A | |
| Expansion | PCIeX16 | N/A |
| PCIeX4 | N/A | |
| PCIeX1 | N/A | |
| PCI | N/A | |
| Mini-PCIe | 1*Mini-PCIe socket, support 3G module | |
| USIM | 1* standard SIM socket | |
| Storage | SATA | 2*SATAII, max. transmission rate: 3Gb/s |
| IDE | N/A | |
| eSATA | N/A | |
| CF Card | N/A | |
| Power | Power Type | DC +12V @ 5A |
| Power Consumption | Typical Power:25W | |
| Environment | Operating Temp. | -10°C ~ 60°C |
| Storage Temp. | -40°C~85°C | |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing | |
| Storage Humidity | 0% ~ 90% relative humidity, non-condensing | |
| Form Factor | Dimensions | 120 mm * 120 mm |
| Weight | 0.208Kg | |
| Regulatory Compliance | FCC, CE, RoHS compliant | |
