Home > Products > Single Board Computers > LX800 PC104 Embedded motherboard ENC-5800

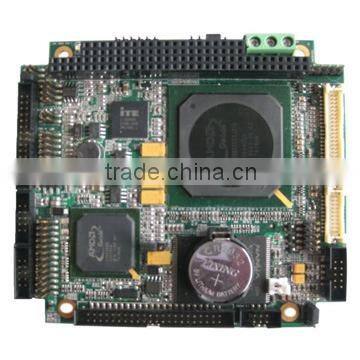

LX800 PC104 Embedded motherboard ENC-5800
Negotiable
/ Piece
1 Piece(Min. Order)
- SHENZHEN
- Credit Card
You May Like
-
3.5inch Embedded Single Board Computers ENC-LX800
-
AMD LX800 Embedded Single Board Computers ENC-5800
-
PC104 Single Board Computers ENC-5800
-
PC104 Embedded Motherboards ENC-5800
-
AMD LX800 PC104 single board computers ENC-5800 Industrial Motherboard
-
3.5" Single board computer ENC-5835 embedded motherboard
Product Details
| Products Status | Stock | Application | Other, industrial fields patient monitor | |
| Chipset Manufacturer | AMD | Form Factor | Other, PC104 formfactor 96mm*110mm | |
| Memory Type | DDR | Graphics Card Type | Integrated | |
| Hard Drive Interface | IDE, Other, IDE, CF card | FSB / HT | 333MHZ | |
| Brand Name | YACOO | Model Number | ENC-5800 | |
| Place of Origin | Guangdong, China |
Product Description
Specification | |
Processor | AMD Geode 3 LX800-500MHz CPU,FSB 333MHz |
Chipset | AMD LX800 chipset,built-in 500MHz CPU and Graphics,CS5536B south bridge |
Memory | Onboard 256MB DDR1 memory |
USB | 4xUSB 2.0 ports |
Display | AMD LX800 chipset with built-in 2D graphic, Resolution is up to 1600x1200@75Hz, and it supports CRT, TTL/LVDS 18/24BIT LCD,16:9/16:10 wide screen display |
LAN | RTL8100CL 10/100Mbps self-adopted network card, RJ45 interface with LED indicator |
Extended Bus | 16 Bit ISA Bus,PC/104 slot |
Audio | Reltek ALC655 AC 97’compatible audio card |
SupperI/O | SMSC 3116 Supper I/O chip |
Storage | 1x44PIN IDE, 1xCF card slot(backside) |
BIOS | AWARD 4Mbit Flash BIOS,Option Boot LOGO |
Power Supply | +5V 1.4A/+12V 0.6A |
