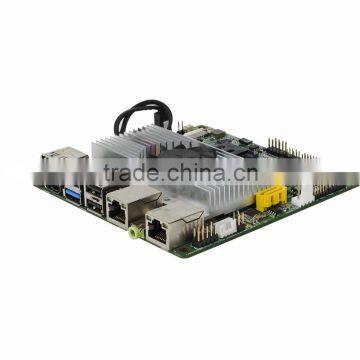

AMD Quad core APU Motherboard Nano-ITX Motherboard DS-2019
Negotiable
/ Piece
1 Piece(Min.Order)
- 10000 Piece / Pieces per Month
- shenzhen
- Credit Card
You May Like
-
AMD Kabini G-SOC 2.0/2.4GHz Dual Core / Quad core APU Nano-ITX Motherboard DS-2019 for Full HD player solutions
-
Intel Haswell Celeron 1.4GHz/1.6GHz Dual Core CPU Fanless Mini Box PC NIS-896 Barebone System
-
AMD Kabini G-SOC Quad/Dual Core APU Mini PC Box PC Barebone System NIS-K880C
-
AMD Fusion APU Nano-ITX Motherboard DS-2018 Single Board Computers
-
AMD APU T56 Digital Signage Motherboard DS-2018 Motherboard
-
AMD Kabini G-SOC 2.0/2.4GHz Dual Core / Quad core APU Full HD Digital Signage Nano-ITX Motherboard DS-2019
Product Details
| Products Status | Stock | Type | Embedded Industrial Motherboard | |
| Brand Name | Yacoo | Model Number | DS-2019 |
Product Description
| Processor | CPU | AMD®KabiniG-SOC Series APU 1.5-2.0GHz Dual/Quad core |
| CPU Package | Onboard | |
| Chipset | AMD® KabiniG-SOC Serial APU | |
| BIOS | AMI EFI BIOS | |
| Memory | Architecture | Dual Channel DDR3 1600MHz FSB |
| Capacity | Max. 8GB | |
| Socket | 1*204pin SO-DIMM socket | |
| Display | Graphic Controller | AMD® RadeonTM HD8 series, support DirectX® 11 |
| LVDS | Support dual channel 18/24 bit | |
| Max. resolution: 1920 * 1200 (support 1080P) | ||
| VGA | N/A | |
| N/A | ||
| HDMI | Support HDMI 1.3A type, 19 pin | |
| Max. resolution: 1920 * 1200 | ||
| Display Port | DISPLAY PORT 1.2 | |
| Max. resolution: 2560 * 1600 | ||
| Dual Display | HDMI+LVDS, DisplayPort+HDMI | |
| LAN | Controller | LAN1: Realtek 8111E GbE Lan |
| LAN2: Realtek 8111E GbE Lan | ||
| WIFI | USB Signal RTL8188 WIFI module, support 802.11N/G/B | |
| Audio | Controller | Realtek ALC662 HDaudio decoder (left&right channel + Mic) Max. amplifier output: 2W |
| Super I/O | Controller | ITE IT8782F, Support System temperature detection |
| H/W Monitor | Watch Dog Timer | Programmable 1 ~ 255 sec./min.; Support System Reset |
| Fan | 1 * 3 Pin DC Fan control | |
| TPM | Controller | N/A |
| I/O | USB | 6 * USB (4 * USB 2.0 /1.1 compatible + 2 * USB3.0) |
| Serial Port | 3 * RS-232, 1 * RS232/485 option | |
| Parallel Port | 8 Bit programmer, 3.3V@24mA | |
| PS/2 | N/A | |
| GPIO | N/A | |
| IEEE 1394 | N/A | |
| Expansion | PCIeX16 | N/A |
| PCIeX4 | N/A | |
| PCIeX1 | N/A | |
| PCI | N/A | |
| Mini-PCIe | 1 * Mini-PCIe socket, support 3G or WIFI | |
| USIM | 1* standard SIM socket | |
| Storage | SATA | 1 * SATAIII, Max. transmission rate: 3Gb/s |
| M-SATA | Half size Mini-PCIe, Support SSD | |
| IDE | N/A | |
| eSATA | N/A | |
| CF Card | N/A | |
| Power | Power Type | DC-in 12V @ 3A |
| Power Consumption | Typical Power:15W | |
| Environment | Operating Temp. | - 0°C ~ 50°C |
| Storage Temp. | -40°C~85°C | |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing | |
| Storage Humidity | 0% ~ 90% relative humidity, non-condensing | |
| Form Factor | Dimensions | 120 mm * 120 mm |
| Weight | 0.208Kg | |
| Regulatory Compliance | FCC, CE, RoHS compliant | |
