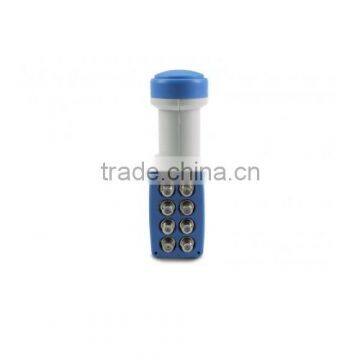

mini dish octo 8 output LNB

FOB Price

USD $8.5 - $12 / Piece

1000 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Product Description:

1. 8 outputs LNB
2. Noise figure:0.5 dB
3. OEM giftbox:Yes
4. CE
5. HD ready

Input Frequency Range	LOW Band:10.7~11.7GHz
	High Band:11.7~12.75GHz
Output Frequency Range	Low Band: 950 - 2050MHz
	High Band: 1100 - 2150MHz
Input VSWR	2.5:1
Output VSWR	2.5:1
L.O. Frequency	Low Band 9.75GHz
	High Band 10.6GHz
L.O. Stability	±2MHz @ (-40c~70c)
L.O. Phase Noise	-70dBc/Hz (1KHz Offset)
	-90dBc/Hz (10KHz Offset)
	-110dBc/Hz (100KHz Offset)
Conversion Gain	60dB (TYP)
Gain Flatness	±0.5dB/6MHz; ±2.5dB/IN BAND
Noise Figure	±0.3dB (Typ)
Image Rejection	50dB(Typ)
Output Power	+5dB (Min) (at 1dB gain compression)
Cross Polarization Discrimination	23dB(Min)
DC SUPPLY VOLTAGE	11~14.5V (V),15.5~22V (H)
SUPPLY CURRENT	130mA (MAX)
LOW/HIGH BAND SWITCHING	Low Band: 0Hz HIGH BAND: 22KHz±4KHz
Output Connector	75Ω "F" type female
RELATIVE HUMIDITY	0%~95%
Operating Temperature	-30 °C to +70 °C

Packing and Delivery:

20pcs/CTN, 30pcs/CTN,50pcs/CTN Depends on customer requirement.

Leading time: Normally 7-15 days for small qty orders

For more than 1*20'GP/40'GP/40'HQ container, always 25-30days.

Several Gift Box packing optional

Our Service:

we have professional designers,engineers and high-efficient production lines.

we can provide you before services:

1.our designers will give you unique,eyes-catched gift box designs to choose

2.our engineers will always be strongest promist to our lnbs

3.our labors is hard-working and careful,promise your order finished in time with good quality

Product Show:

Production Line:
