Product Details
Brand Name | OEM | Model Number | QS410RT | |
Place of Origin | Guangdong, China |
Product Description

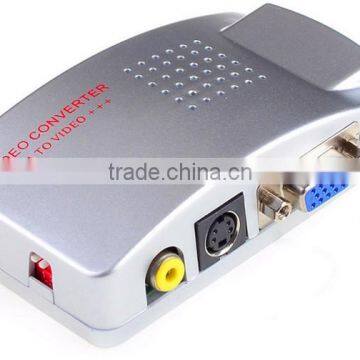

Computer Laptop PC VGA To Video Universal PC VGA to TV AV RCA Signal Adapter Converter Video Switch Box Supports NTSC PAL system
OEM &ODM Order are warm welcomed !
VIDEO CONVERTER VGA TO VIDEO
The whole family shares one computer, watching movies and playing games on the internet.
The popularization of computers brings great conveniences for people’s work and life. Maybe at one certain occasion you need to change the VGA signals into Video/S video signals. The movies you downloaded from the internet can be entirely combined to the family cinema, and you can easily experience cinema effect ion. You also can demonstrate the BRM need to be presented to the audience through the large-screen TV…
Video Converter can easily help you to realize the conversion of VGA signals into Video/S video signals.
Performance Characteristics:
- One input of VGA signals, one output of VGA signals.
- One output of Video, one out put of S Video.
- One DC 5V power interface.
- Resolutions of signals: 640x480/800x600/1024x640/1024x768/1280x720/1280x768/1280x800/1280x1024/1280x854/1280x960/1360x768/1365x768/1366x768/1440x900/1600x1200/1920x1080/1920x1200/1920x1440/1152x864/1176x664/1600x900/1600x1000/1600x1024/1680x1050/1768x992/1792x1344/1800x1440/1856x1392/2048x1152/2048x1280/2048x1536/2560x1600 At the same time, output the VGAVIDEOS-VIDEO signals.
- Show Simultaneously pictures on the monitor and TV.
- Support the systems below: The TV systems of NTSC (Taiwan and USA), NTSC-EIAJ (Japan), PAL (EURO, China) PAL-M (Brazil), PAL-N (Uruguay Paraguay).
- Support the OVERSCAN and UNDERSCAN display mode.
- Convenient to carry because it is light, thin ,short and small.
- Volume: 110mm(length)x56mm(width)x36mm(height)
Explanation of Interface:
name | Explanation |
(1)DC 5V | connect to USB interface |
(2)Video Out | connect to TV or VCR |
(3)S video Out | connect to TV or VCR |
(4)VGA Out | connect to monitor |
(5)VGA In | connect to AGP(Accelerated Graphics Port) |
Functions of keystrokes:
name | Explanation |
(1)(2)(3)(4) ← → ↓ ↑ | The four keystrokes are up down left right, and they can adjust the positions of AV pictures. |
(5)MENU | Menu, press once appearing OSD menu, long press for 3 seconds will reset. |
(6)ZOOM | Amplify key, press once amplify the pictures, Press again, reset. |
System requirements:
- support PC and MAC computers.
- no need to install Device Driver, plug and play.
Packing accessories:
Name of accessories | quantity | remarks |
AV cable | one | -- |
VGA cable | one | -- |
S video cable | one | -- |
Manual | one | -- |
Host of converter | one | -- |
USB cable | one | Power supply |
OSD Menu:
- Horizontal size: Enter the menu after next by the up or down arrow key can be enlarged or reduced AV Horizontal size of the screen.
- Vertical size: Enter the menu with the left or right buttons to select the option, then press the up or down arrow key to adjust the vertical size of the AV screen.
- Brightness: Enter the menu with the left or right buttons to select the option, press the up or down arrow key to regulate AV brightness.
- Contrast: Enter the menu with the left or right buttons to select the option, and press the up or down arrow keys to adjust the contrast of AV screen.
- Saturation: Enter the menu with the left or right buttons to select the option,and press the up or down arrow key to adjust the color gradation of AV screen.
- Hue: Enter the menu with the left or right buttons to select the option, and adjust the hue (during 0-100) with up and down arrow key. (Notice: hue selection only work in the NTSC format.)
- Sharpness: Enter the menu with the left or right buttons to select the option,and adjust the sharpness (during 0-100) with up and down arrow key.
- PAL BDGHI: Enter the menu with the left or right buttons to select the option,then click up or down arrow key to switch the output format. Support the systems below: The TV systems of NTSC (Taiwan and USA), NTSC-EIAJ (Japan), PAL (EURO, China) PAL-M (Brazil), PAL-N (Uruguay Paraguay).
- OSD Background: Enter the menu with the left or right buttons to select the option,to switch Black/white OSD background with up or down arrow key.
- CRT/LCD: based on the connected TV CRT / LCD screen to choose corresponding CRT/LCD option for improving the stability of the AV screen.
- Partial Image Enlargement: Select the option with left or right button , then click up or down arrow key to select the location of local image to enlarge .There are top-left corner / top right corner / lower left corner / lower right corner to enlarge the four positions.
Product Detail Photos:
