Home > Products > Wine filling machine > wine filling machine
wine filling machine
USD $2,000 - $30,000
/ Set
1 Set(Min. Order)
- shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JINRI | |
| Model Number | BGF |
Product Description
Specifications
Wine filling machine1.Capacity:2000-10000b/h
2.Bottle 250ml 500ml 750ml
3,Advanced technology
4.High Efficiency
Wine filling machine
Alcohol Drink / White Wine bottle filling machine / equipment / production line is suitable filling wine,working steable with famous electrical components and working very stable
BGF Wash-filling-capping 3-in-1unit
1.Capacity:2000-30000b/h
2.Bottle 250ml 500ml 750ml etc
3,Advanced technology
4.High Efficienciency
2.Bottle 250ml 500ml 750ml etc
3,Advanced technology
4.High Efficienciency
| Technical Data | ||||
| Model | BGF14124F | BGF18186F | BGF24248F | BGF323210F |
| The number of Washing, Filling, Capping | 14-12-4 | 18-18-6 | 24-24-8 | 32-32-8 |
| Producing capacity; The number of bottle(600ml)/hour | 2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 |
| Applicable bottle specifications (mm) | φ=50-108 H=170-340 330ml-2.25L | |||
| Pressure (kg/cm2) | 2~3 | |||
| Motor power (kw) | Main motor 1.5kw | Main motor 2.2kw | Main motor 3kw | Main motor 4kw |
| Outside vacuum pump power (kw) | 0.75 | 1.1 | 1.5 | 2.2 |
| Overall dimension (mm) (LxWxH) | 2100x1400x2500 | 2460x1720x2650 | 3100x2100x2650 | 3500x2500x2650 |
| Weight(kg) | 2500 | 3500 | 4200 | 5500 |
| Technical Data | |||
| Model | BGF404010F | BGF484812F | BGF606015F |
| The number of Washing, Filling, Capping | 40-40-10 | 48-48-12 | 60-60-15 |
| Producing capacity: The number of bottle(600ml)/hour | 16000-20000 | 20000-24000 | 25000-30000 |
| Applicable bottle specifications (mm) | φ=50-108 H=170-340 330ml-2.25L | ||
| Pressure (kg/cm2) | 2~3 | ||
| Motor power (kw) | Main motor 7.5kw | Main motor 9.5kw | Main motor 12kw |
| Outside vacuum pump power (kw) | 2.2 | 3 | 4 |
| Overall dimension (mm) (LxWxH) | 4600x1800x2650 | 5200x4500x3400 | 6500x4500x3400 |
| Weight(kg) | 6800 | 7600 | 9800 |
After seal bottle photo

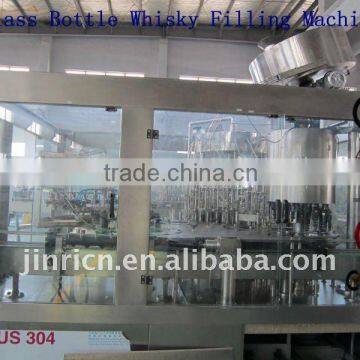

machine photo
