Home > Products > Wine filling machine > wine filling machine
wine filling machine
- shanghai
- T/T
You May Like
Product Details
| Application | Beverage | |||
| Packaging Type | Bottles | Packaging Material | Other, wine ,liquor | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Power | 2.2KW | Place of Origin | Jiangsu, China | |
| Brand Name | jinri | Model Number | CGF | |
| Certification | CE ISO | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
Wine filling machine1.Touch screen and PlC
2.2000-20000BPH
3.Life time service
4.High quality and good price

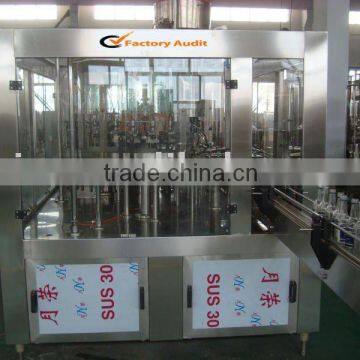

wine filling machine
Technical features
Capacity 6000B/H (0.75L)
Applicable bottle type:Glass bottle
Bottle size:200ml,450ml
Material:All parts contacting with the liquid is SS304
Applicable bottle diameter D=50~92mm
Applicable bottle height H=150~320mm
Number of heads Rinsing head:24 filling heads:24 Capping heads:8
Power
Main motor 2.2KW
Hopper motor 0.37KW transporting motor 0.75KW
Working voltage AC 380V Spraying pump 0.37KW
Control voltage DC 24V vortex air pump 0.75KW
Filling pump 0.75KW
Water consumption(rinsing bottle water) about 1.5m³
water pump 4MPa
Dimension(L×W×H) 2210×1650×2750mm
Weight bout 3500KG
