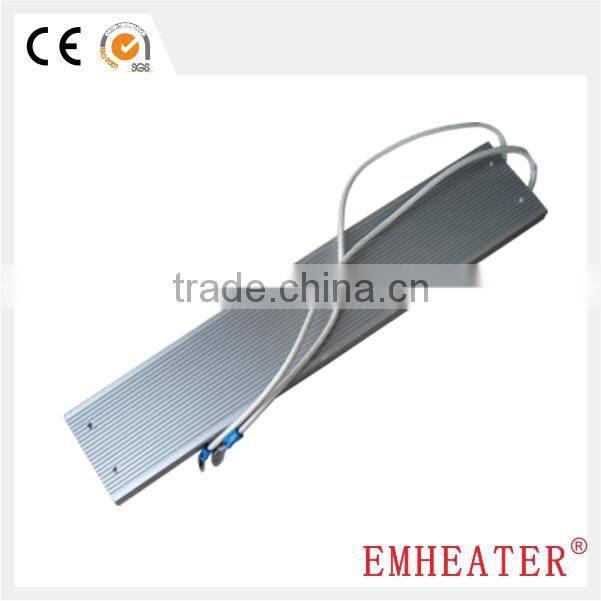

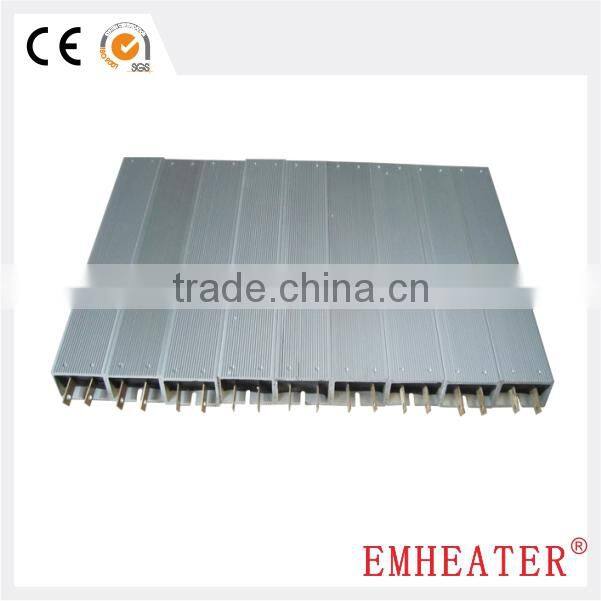

Aluminum Resistor, Ultra Aluminum Resistor, Aluminum Fixed Resistor 0.75kW

Production

name

Aluminum resistor, wire wound resistor, Ultra aluminum resistor, Aluminum Fixed Resistor, Braking Resistor

Power rating

0.5W-12000W

Resistance value

0.01Ω-100KΩ

Resistance tolerance

±0.1%,±0.5%,±1%,±5%,±10%

Features

1.High insulating capacity, encapsulation by Low temperature performance quartz sand material, good performance in vibration ,humidity and heat and good dissipation.

2.Thickness:5mm,8mm,10mm,12mm,15mm,20mm (For customer requests, length and width can be changed).

3.Widely used in power supply, transducer, elevator, arena audio and

Lifting, Braking, Ship ,Load equipment, high requirement equipment

Industry, etc.

4.Multi connection form will be easily to fix

Common

specification

60W50Ω, 60W100Ω, 80W20Ω, 100W100Ω, 200W50Ω, 300W, 500W, 1000W, 2000W, etc.

Performance

Test item

Test condition

performance

Temperature

coefficient

JIS-C-5202 5-2

±250PPM/°C Max

Power rating

load

JIS-C-5202 5-4

40°C,power rating 1H

ΔR≤±(1%+0.1Ω)Surface temperature ≤350°C

Short-term

overload

JIS-C-5202 5-5

1000% rated power 5s

Free or appearance or

structural irregularity

ΔR≤±(2%+0.1Ω)

Insulation

resistance

JIS-C-5202 5-6

1000V DC

100 MΩ Min

Dielectric

withstanding

voltage

JIS-C-5202 5-7

1500V DC 60s

Free or appearance or

structural irregularity

ΔR≤±(0.1%+0.05Ω)

Vibration

JIS-C-5202 6-3

1.5mm,10-50-10Hz/min

Free or appearance or

structural irregularity

ΔR≤±(1%+0.05Ω)

Thermal

shock

JIS-C-5202 7-3

Room temp 30 min ON-55°C

15 min OFF

Resistor free of structural irregularity crack of silicon cement surface

ΔR≤±(2%+0.1Ω)

humidity

JIS-C-5202 7-5

40°C 90%RH 240H

Free or appearance or

structural irregularity

ΔR≤±(3%+0.1Ω)

Load life

JIS-C-5202 7-10

90Min ON-30Min OFF 500H

Free or appearance or

structural irregularity

Discoloration of marking

ΔR≤±(3%+0.1Ω)

Cooperation partner

SAMSUNG,LG, TAIDA,CHANGHONG,TCL,KONKA ,ECT

NOTE

1. For customer specifications, please contact us to discuss the details.
2. Different power rating owning multi weight, dimension and packing.
3. More details, please contact us.
