10KW Variable Speed 1500-2500 Rpm Marine Generator

FOB Price

US$ 700 - 1,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1. Rare earth permanent magnetic for rotor.

2. 100%COPPER wire winding for stator.

3. Brushless and easy maintaince.

4. Speed can vary from 1500rpm-2700rpm. with digital inverter to insure stable voltage and frequency.

5. High efficiency and can save 20% fuel than normal generator.

6. Also this new design WTS alternator is more compact and it can help you to save sea freight.

7. Reliable quality, 100% warranty, variable speed but stable frequency and voltage.

Model	WTS-5	WTS-6.5	WTS-8	WTS-10	WTS-12
Speed	500RPM-3000RPM
Rated voltage	230(V)
Rated current	2.17A	28.3A	34.8KW	43A	52A
Rated power	5KW	6.5KW	8KW	10KW	12KW
Frequency	50/60(Hz)

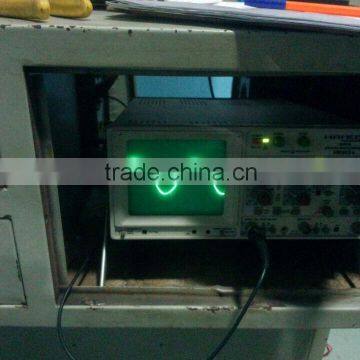

Output wave	pure sine wave,waveform distortion rate≤1.5%
Efficiency	≥90%
Protect Class	IP21
Voltage rate	±2%
Insulation Class	H
GW	42.5(Kg)	44.3(Kg)	45(Kg)	47(Kg)	47.5(Kg)
NW	39.5(Kg)	41(Kg)	42(Kg)	43(Kg)	43.5(Kg)
The electronic control	digital inverter
Connection	SAE5/6.5 or Taper axis
Packing Dimension	290292292(MM)
Marks	PMA+INVERTER=2 in 1 complete set

100% copper winding

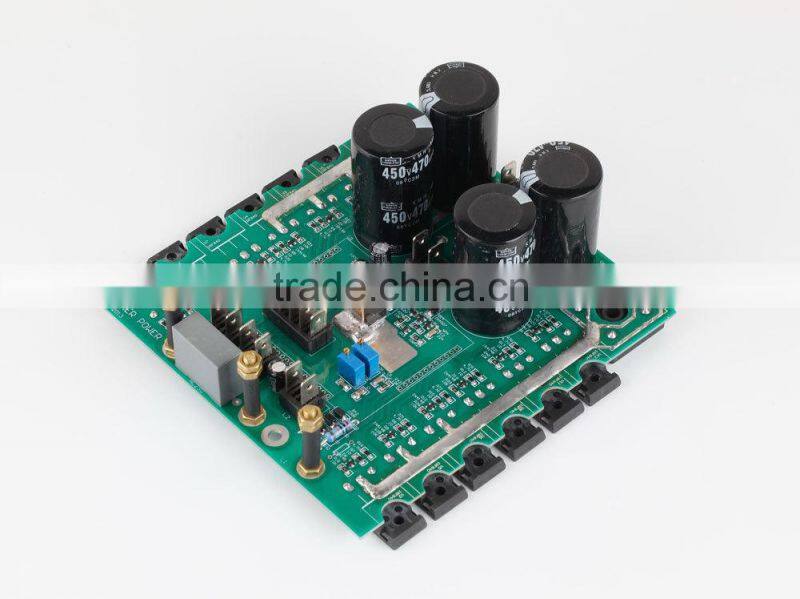

Digital inverter to insure stable voltage and Hertz
