2.8kw Digital Invertor Generator Output Pure Sine Wave
- Fuzhou
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | Werner | |
| Model Number | WI-5300 | Output Type | AC Single Phase | |
| Speed | 3600 | Frequency | 50/60 | |
| Rated Power | 2800W | Rated Voltage | 120v, 230V, 240v | |
| Rated Current | 12.1A |
Product Description
Specifications
High efficiency 90%,permanent magnetic generatorpower reach 2800W ,
save 20% gas than other machines,
easy for maintenance
Advantages

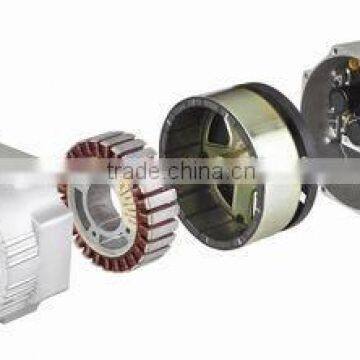

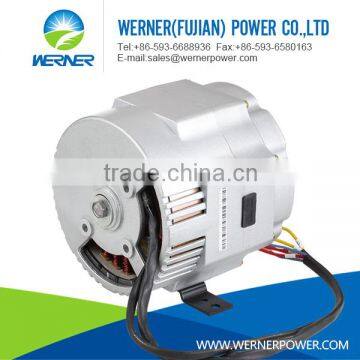

PERMANENT MAGNETIC ALTERNATOR:We choose permanent magnetic alternator which is brushless with inverter electronic control system.
DIGITAL INVERTER SYSTEM: Pure sine wave and THD less than 1%.High voltage multiphase AC power generated by the alternator and the AC power is then converted to DC. Finally the DC power is converted back to AC by the inverter unit. The inverter unit also smoothes and cleans the power.
HIGH QUALITY POWER OUTPUT: A sinewave inverter that guarantees commercial-quality electricity – making it ideal for use with frequency sensitive electrical equipment such as computers, TV sets, air condition and so on.
HIGH FUEL EFFICIENCY: As coupled with the inovation of alternator,this digital inverter generator can save 20% fuel consumption than other home use genset.
POWERFUL 4-STROKE OHV GASOLINE ENGINE: Compact size, high power, simple mechanism and easy starting.
| Model Name | W5300I | ||
| Engine | 168F | ||
| Engine Type | 4-stroke, OHV, single cylinder, cylinder inclined, air cooled | ||
| Displacement | 163ml | ||
| Compression | 8.5:1 | ||
| Rated rev | 3600r/min | ||
| Ignition system | T.C.I | ||
| Start system | Recoil hand-operated, electric system | ||
| engine rated output | 3400W | ||
| Fuel tank capacity | 14L | ||
| Fuel comsumption | ≤316g/kw.h | ||
| Lube Oil capacity | 0.6L | ||
| Rated AC frequency | 50/60HZ | ||
| Rated AC voltage | 230V | ||
| Rated AC current | 12.1A | ||
| Rated AC output | 2800W | ||
| DC output | 12V 5A | ||
| output waveform | pure sine wave | ||
| output efficiency | 90% | ||
| Total Harmonic Distortion | ≤1.5% | ||
| Phase | single phase | ||
| Power factor | 1 | ||
| Frequency stability | ±0.5Hz | ||
| Voltage regulation | 0.5%V | ||
| Dimension | 477×440×470 (mm) | ||
| Net weight | 33KG | ||
100% copper wire
LED Indication
Digital Inverter
