Potassium Sulfate Vibrating Dryer

wooden case

Potassium sulfate Vibrating dryer

Fob Price:Negotiable

Supply Ability:1000 set/year

Mini Quantity:1set

Port:Shanghai,China

Payment Terms:T/T,L/C,DP and So on

Size:Based the capacity of the machine itself

Material:SUS304 ,Carbon steel ,SUS316L and other material .

Features:

1.Fluidizing dryer is also called fluid bed. Through operation and improvement over 30 years, it has play an active part in the fields of pharmaceutical, chemical, foodstuff, gain and so on industries. It consists of air filter, fluid bed, cyclone separator, dust collector, high-speed centrifugal fan, control cabinet and so on. Because of the difference of property from raw material, it is necessary to equip dust remover in accordance with practical needs. It may select cyclone separator and dust collector both or one of them. In general, cyclone separator can be selected if the raw material is larger and the dust collector may be selected if the raw material is light. Moreover, there is pneumatic feeding device for your selection. There are two kinds of operation for this machine, continuous and intermittent type.

2.The clean and hot air enters into fluid bed through distributor of valve plate. The wet material is fed from the feeder forms the fluid state by hot air. Because of the wide contact between hot air and raw materials, the time of drying is short. If use continuous type, the material enters from the front of bed, fluidized in bed for several minutes, and float another side of bed. The machine works in negative pressure.

Preface

A vibrating Fluid Bed provides optimal processing conditions and transport of products with relatively poor fluidization characteristics. The VIBRO-FLUIDIZER is most often applied as a final stage in a spray drying process for after drying or cooling, but it can also be operated as an individual unit to dry, cool, de-dust or agglomerate powders from other processes. The VIBRO-FLUIDIZER is a 100% sanitary vibrating Fluid Bed complying with the strictest standards and regulation in the dairy and food industries.

Adopt vibration motor, it is smooth in running and convenient in maintenance. The noise is low and the service life is long.

The state of fluidization is uniform and no dead gaps or broken phenomenon so to even dry, cool product.

It is good in adjustment and wide in the field of application. The thickness of raw material and the speed of raw material to be moved inside the machine and the change of vibration range can be steeples. The damage the surface of raw material is small. So it can be used for raw materials that are easily to be broken. If the granule is not normal, the effect of process can not be effected.

The structure is fully seal, it is effective to prevent from cross pollution of raw materials and the working environment is clean.

The mechanical and heat are high and its effective of energy saving, compared to ordinal dryer, 30-60% of energy is saved.

The moist powder layer is vibrated on an air distributor plate. The effect of the vibration combined with the upward and forward directed flow of drying air through the perforated plate create ideal processing conditions and powder transport. Thanks to the vibration, it is possible to operate with fluidized powder layers of less than 200 mm. This gives a narrow and swift controlled residence time whilst avoiding attrition.

Production process

Design → Raw material inspection →laser cutting machine→ Welding→ Inspection → Polishing → Inspection→Assembling → inspection → Package → Delivery

From design to assembly and then ship the unit, every step we require our workers to control the quality strictly, so that each unit can be delivered perfectly.

(Welding )

(Polishing)

( Deteching Instrument )

Our Advantages
 1. We use high-end imported brands of instruments and processing machines, to create superior quality machine for you ; YIBU makes you feel free about the after-sales service.
 2. We provide the spare parts with the cost of the spare parts themselves for lifelong time .

3.We can make the machine based on the customer request .

4.For the material for the machine ,we have several kinds of raw material for choice  Such as SUS304 ,316L , carbon steel as well as others .

5.For the heating source for the machine , we can make it based on the available facility at customer site ,such steam ,electricity ,gas-furnace and so on.

6.we invited and pointed Professor Arun s. Mujumdar, the lifetime chairman of International Drying Conference and the winner of “Friendship Award” of the Chinese government as our technical consultant as to keep YIBU machine with  the world advantage technology;

7.We have R&d team ,and can help customer to design his process of the product .

8. For the motor , we have more choices , such ABB,SEW,Siemens and so on .

9.For the burner , we have choices of Usgas ,Rellio or other international brand .

11.For shaft , we can choose SKF ,Japan NSK bearings.etc .

12.Our machine we can design with explosion proof , dust -free, water-free , sealed circulating .

13. Guarantee /warranty :1year calculating from the day of successful installation and commissioning.

14.Package : wooden packing . Special fumigation -free wooden material . Or according to customer requirement .

15.Product special features : A. Dust-proof ,heat-proof ,oil -proof ,explosion -proof ;

                                            B.Green,Environment performance;

Packaging & Shipping

 Packing Size:  depending on the machine

Container Load:  20OT ,20GP, 40OT,40GP and 40FR

Outer Packing: plastic film or wooden case

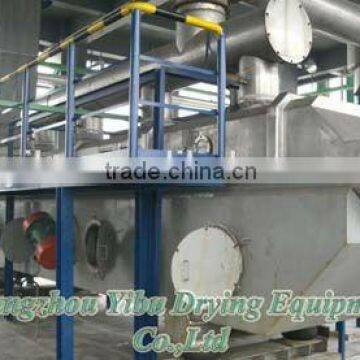

Glance at the equipment at customer site

Annul visit to customer site

As to know whether the machine sold to customer run well or not in customer site , every year we will make a visit to customer site for it .

Our Services

Pre-service
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.

1. Introduce the product to the customer in detail, answer the question raised by customer carefully;

2.Make plans for choice according to the needs and special requirements of users in different sectors;

 Sale service

1. Ensure product with high quality and pre-commissioning before delivery;

2. Delivery on time;

3.Provide full set of documents as customer’s requirements.

After-sale service

Provide considerate services to minimize clients’ worries.

1.Assist clients to prepare for the first construction scheme;

2.Install and debug the equipment;

3.Train the first-line operators;

4. Examine the equipment;5.Take initiative to eliminate the troubles rapidly;

6.Provide technical support;

7.Establish long-term and friendly relationship.

Service commitment

1. Provide clients one-year warranty to make sure the machine work well;

2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;

3.Send every client a preferential quotation.

FAQ

1. Are you a manufacturer ,trading company or a third party

We are a manufacturer ,and we have started our production on 1970 and have the private company right since 1995.

2. Where is your factory located

Our company is located in Changzhou city ,Jiansu province,China .it is in the middle of Shanghai and nanjing .

3. How can I go to your factory ?

You can fly to shanghai pudong or hong qiao international airport directly ,and then take the high speed train or bus to Changzhou station and then we can pick you up at changzhou station for our company . Our company is around 30~40km away from the changzhou station.

If you are in China now , you can fly to benniu airport ,or take the train or bus to our city directly .

We sincerely welcome to visit our company at any time

4. What’s your mini order ?

    Our mini order is one set .

5. Is there any certificate of YIBU ?

Yes, we got ISO9001:2008 Quality Management System Certificate,ISO14001:2004 Environmental Management System Certificate, OHSHS18001:2004 Occupatinal Healthe and Safety Management System Certificate, ISO10012:2003 Certificate for the system of Inspection measurement and Test, CE, CE;SGS;TUV;GOST;UL;GMP also we got 60 item patent, CE;SGS;TUV;GOST;UL;GMP

6. Is there any standard of electronic systems?

YES The electronic systems and their safety should comply with the requirements set forth in 21 CFR Part 11 and GMP Annex 11; The data should be collected at appropriate time intervals and stored in the system in a fixed format that can be printed out/read;

Access to all input and output values should be provided by entering the user personal code and password. The system should ensure three-level access (Administrator-Supervisor-Operator). A detailed description of the access rights for each level should be included to the equipment functional specification (FS);
