Fresh Parsley Belt Dryer
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | YIBU | Model Number | DW | |
| Type | Dryer | Voltage | 220V/380V/Based on the client's requirement | |
| Power(W) | 4.5-120KW; | Weight | Based on different type | |
| Dimension(L*W*H) | Based on different type | Certification | CE;UL;CSA;SGS;BV;RoHS;CCC;ISO9001:2008;ISO14001, | |
| Warranty | 2Years | After-sales Service Provided | Engineers available to service machinery overseas |
wooden case
Product Description
1.Descriptions
This machine is a continuous penetrating flow drying equipment applied for drying pieces strip and particles state materials with good ventilation. The machine is suitable for the materials such as dewatering vegetable, herbal medicine of traditional
Chinese medicine and others, for which the water contents are high and high drying temperature is not allowed. The machine owns the advantages, of fast drying speed, high evaporation capacity and good product quality. The de-watered & filtered cake state paste material should be made into particles or strips before drying process.
Single layer

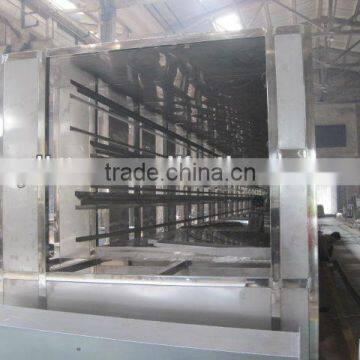

Inner structure

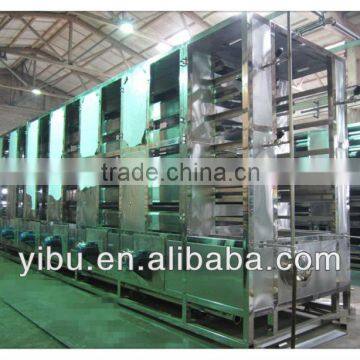

Multilayer
2.Principle
The materials are uniformly distributed on the mesh-belt by the material feeder. The mesh-belt generally adopts 12-60 mesh stainless steel mesh and it is drawn by a transmission device and move inside the dryer. The dryer is composed of several sections.
For each section the hot air is circulated separately. Part of exhausted gas is exhausted by a special moisture exhaust blower. The waste gas is controlled by an adjustment valve. The hot air passes through the mesh-belt covered with bring water material away.
The mesh-belt moves slowly, running speed can be freely adjusted according to the material property. The final products after the drying process will fall into the material collector continuously. The top and low circulation units can be freely equipped according to the user's requirements. The number of section might be selected according to the production demands.
3.Applications
De-watering vegetable, particle feed, gourmet powder, shredded coconut stuffing, organic color, compound rubber, acral fibre, medicine product, medicine material, small wooden product, plastic product, aging and solidification for the electronic component and device.
4.Technical parameters

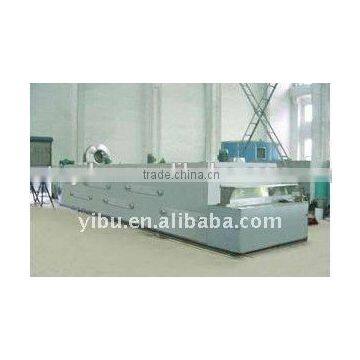

5.Equipment picture
