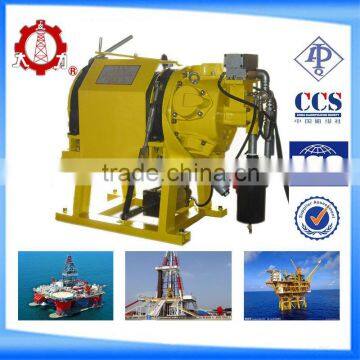

JQH30*26 series 3T remote control air winch for sale offshore platform marine oilfied mining

Specifications

ⅠWorking Principle

 JQHS30 is a kind of manual operated single drum type air winch. It adopts compressed air as power to drive the TMH17 Piston Air Motor, by operating manual diversion valve on the motor, driving drum via two grades gears(to reduce transmitting speed and enlarge torque)so as to lift  and drag heavy cargoes. As well, the winch can perform hoisting, lowering and stop actions to wire rope, with variable speedcontrol function.

ⅡSecurity

 In order to ensure the security, it is specially designed with hand and air cylinder brake for fear of unexpected accidents. The Double-braking Air Winch is competent to work under any extremely conditions, with 3T Full Force, enabling starting with load for the high starting torque.

Ⅲ Application Places

This winch is widely used for drilling platform, marines, mining, engineering sites, platform of oilfield off-sea and inland etc.to drag and pull heavy cargoes.

Why choose us:

1.Equipped with cylinder air brake, which enables the winch automatically in brake when stops.

2. High practicability with anti-explosive function, especially stable and reliable in inflammable,explosive,wet,damp,and other extremely working environments.

3. Compact in size, light weight, portable to move and easy to install.

4. Variable speed control, flexible to perform clockwise and anti-clockwise rotation.

5. Reliable operation with little noise with muffler.

6. Remote control distance could reach 6-15M.

7. Low maintenance relieves your anxiety and assures you to use it freely.

8. The Normal Pull Force can be tailor-made to your requirement.

9. Especially fit for hauling and lifting drilling pipes on the second platform of oilfields.

10. High starting torque ensures it starting with load and performing hoisting, lowering and stopping actions easily.

Technical Parameters:
