Product Details
| Bore Size | 12, 150 | Brand Name | XTSEAO | |
| Model Number | UCP215-48 | Place of Origin | Hebei, China |
Product Description

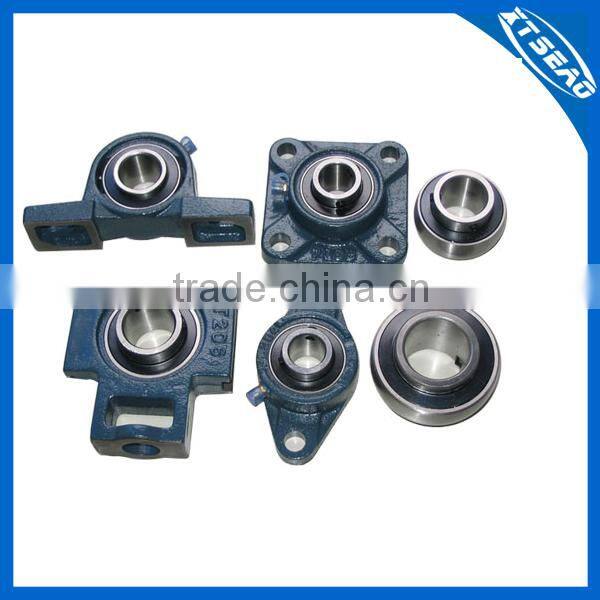

Our Pillow products
- UCF200 series Pillow block bearing UCF201~UCF218
- UCT200 series Pillow block bearing UCF201~UCF217
- UCFL200 series Pillow block bearing UCF201~UCF218
- UCP200 series Pillow block bearing UCF201~UCF213

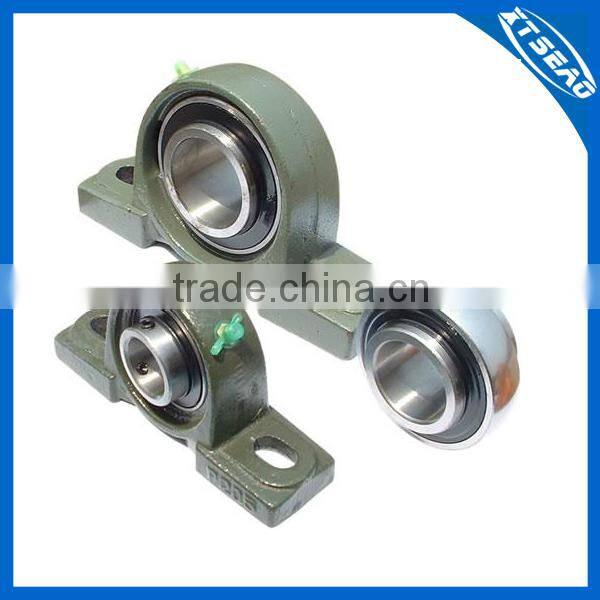

UCP Series:
Unit NO. | Bearing No. | Housing No. | Shaft Dia | Boundary dimensions(mm) | Bolt Size | Mass(Kg) | ||||||||||
in. | mm | h | a | e | b | s1 | s2 | g | w | Bi | n | ≈ | ||||
UCP201-8 | UC201-8 | P204 | 1/2 |
| 33.3 | 127 | 95 | 38 | 13 | 16 | 15 | 65 | 31 | 12.7 | 3/8 | 0.8 |
UCP202-10 | UC202-10 | P204 | 5/8 |
| 33.3 | 127 | 95 | 38 | 13 | 16 | 15 | 65 | 31 | 12.7 | 3/8 | 0.8 |
UCP204 | UC204 | P204 |
| 20 | 33.3 | 127 | 95 | 38 | 13 | 16 | 15 | 65 | 31 | 12.7 | M10 | 0.8 |
UCP204-12 | UC204-12 | P204 | 3/4 |
| 33.3 | 127 | 95 | 38 | 13 | 16 | 15 | 65 | 31 | 12.7 | 3/8 | 0.8 |
UCP205 | UC205 | P205 |
| 25 | 36.6 | 140 | 105 | 38 | 13 | 16 | 16 | 70 | 34 | 14.3 | M10 | 1 |
UCP205-14 | UC205-14 | P205 | 7/8 |
| 36.6 | 140 | 105 | 38 | 13 | 16 | 16 | 70 | 34 | 14.3 | 3/8 | 1 |
UCP205-15 | UC205-15 | P205 | 15/16 |
| 36.6 | 140 | 105 | 38 | 13 | 16 | 16 | 70 | 34 | 14.3 | 3/8 | 1 |
UCP205-16 | UC205-16 | P205 | 1 |
| 36.6 | 140 | 105 | 38 | 13 | 16 | 16 | 70 | 34 | 14.3 | 3/8 | 1 |
UCP206 | UC206 | P206 |
| 30 | 42.9 | 165 | 121 | 48 | 17 | 21 | 18 | 83 | 38.1 | 15.9 | M14 | 1.6 |
UCP206-17 | UC206-17 | P206 | 1-1/16 |
| 42.9 | 165 | 121 | 48 | 17 | 21 | 18 | 83 | 38.1 | 15.9 | 1/2 | 1.6 |
UCP206-18 | UC206-18 | P206 | 1-1/8 |
| 42.9 | 165 | 121 | 48 | 17 | 21 | 18 | 83 | 38.1 | 15.9 | 1/2 | 1.6 |
UCP206-19 | UC206-19 | P206 | 1-3/16 |
| 42.9 | 165 | 121 | 48 | 17 | 21 | 18 | 83 | 38.1 | 15.9 | 1/2 | 1.6 |
UCP206-20 | UC206-20 | P206 | 1-1/4 |
| 42.9 | 165 | 121 | 48 | 17 | 21 | 18 | 83 | 38.1 | 15.9 | 1/2 | 1.6 |
UCP207 | UC207 | P207 |
| 35 | 47.6 | 167 | 127 | 48 | 17 | 21 | 19 | 94 | 42.9 | 17.5 | M14 | 2.1 |
UCP207-20 | UC207-20 | P207 | 1-1/4 |
| 47.6 | 167 | 127 | 48 | 17 | 21 | 19 | 94 | 42.9 | 17.5 | 1/2 | 2.1 |
UCP207-21 | UC207-21 | P207 | 1-5/16 |
| 47.6 | 167 | 127 | 48 | 17 | 21 | 19 | 94 | 42.9 | 17.5 | 1/2 | 2.1 |
UCP207-22 | UC207-22 | P207 | 1-3/8 |
| 47.6 | 167 | 127 | 48 | 17 | 21 | 19 | 94 | 42.9 | 17.5 | 1/2 | 2.1 |
UCP207-23 | UC207-23 | P207 | 1-7/16 |
| 47.6 | 167 | 127 | 48 | 17 | 21 | 19 | 94 | 42.9 | 17.5 | 1/2 | 2.1 |
UCP208 | UC208 | P208 |
| 40 | 49.2 | 184 | 137 | 54 | 17 | 25 | 19 | 100 | 49.2 | 19 | M14 | 2.6 |
UCP208-24 | UC208-24 | P208 | 1-1/2 |
| 49.2 | 184 | 137 | 54 | 17 | 25 | 19 | 100 | 49.2 | 19 | 1/2 | 2.6 |
UCP208-25 | UC208-25 | P208 | 1-9/16 |
| 49.2 | 184 | 137 | 54 | 17 | 25 | 19 | 100 | 49.2 | 19 | 1/2 | 2.6 |
UCP209 | UC209 | P209 |
| 45 | 54 | 190 | 146 | 54 | 17 | 25 | 20 | 108 | 49.2 | 19 | M14 | 3 |
UCP209-26 | UC209-26 | P209 | 1-5/8 |
| 54 | 190 | 146 | 54 | 17 | 25 | 20 | 108 | 49.2 | 19 | 1/2 | 3 |
UCP209-27 | UC209-27 | P209 | 1-11/16 |
| 54 | 190 | 146 | 54 | 17 | 25 | 20 | 108 | 49.2 | 19 | 1/2 | 3 |
UCP209-28 | UC209-28 | P209 | 1-3/4 |
| 54 | 190 | 146 | 54 | 17 | 25 | 20 | 108 | 49.2 | 19 | 1/2 | 3 |
UCP210 | UC210 | P210 |
| 50 | 57.2 | 206 | 159 | 60 | 20 | 25 | 22 | 114 | 51.6 | 19 | M16 | 3.6 |
UCP210-30 | UC210-30 | P210 | 1-7/8 |
| 57.2 | 206 | 159 | 60 | 20 | 25 | 22 | 114 | 51.6 | 19 | 5/8 | 3.6 |
UCP210-31 | UC210-31 | P210 | 1-15/16 |
| 57.2 | 206 | 159 | 60 | 20 | 25 | 22 | 114 | 51.6 | 19 | 5/8 | 3.6 |
UCP210-32 | UC210-32 | P210 | 2 |
| 57.2 | 206 | 159 | 60 | 20 | 25 | 22 | 114 | 51.6 | 19 | 5/8 | 3.6 |
UCP211 | UC211 | P211 |
| 55 | 63.5 | 219 | 171 | 60 | 20 | 25 | 22 | 126 | 55.6 | 22.2 | M16 | 4.4 |
UCP211-32 | UC211-32 | P211 | 2 |
| 63.5 | 219 | 171 | 60 | 20 | 25 | 22 | 126 | 55.6 | 22.2 | 5/8 | 4.4 |
UCP211-34 | UC211-34 | P211 | 2-1/8 |
| 63.5 | 219 | 171 | 60 | 20 | 25 | 22 | 126 | 55.6 | 22.2 | 5/8 | 4.4 |
UCP211-35 | UC211-35 | P211 | 2-3/16 |
| 63.5 | 219 | 171 | 60 | 20 | 25 | 22 | 126 | 55.6 | 22.2 | 5/8 | 4.4 |
UCP212 | UC212 | P212 |
| 60 | 69.8 | 241 | 184 | 70 | 20 | 25 | 25 | 138 | 65.1 | 25.4 | M16 | 6.2 |
UCP212-36 | UC212-36 | P212 | 2-1/4 |
| 69.8 | 241 | 184 | 70 | 20 | 25 | 25 | 138 | 65.1 | 25.4 | 5/8 | 6.2 |
UCP212-38 | UC212-38 | P212 | 2-3/8 |
| 69.8 | 241 | 184 | 70 | 20 | 25 | 25 | 138 | 65.1 | 25.4 | 5/8 | 6.2 |
UCP212-39 | UC212-39 | P212 | 2-7/16 |
| 69.8 | 241 | 184 | 70 | 20 | 25 | 25 | 138 | 65.1 | 25.4 | 5/8 | 6.2 |
UCP213 | UC213 | P213 |
| 65 | 76.2 | 265 | 203 | 70 | 25 | 29 | 27 | 150 | 65.1 | 25.4 | M20 | 7 |
UCP213-40 | UC213-40 | P213 | 2-1/2 |
| 76.2 | 265 | 203 | 70 | 25 | 29 | 27 | 150 | 65.1 | 25.4 | 3/4 | 7 |
UCP214 | UC214 | P214 |
| 70 | 79.4 | 266 | 210 | 72 | 25 | 31 | 27 | 156 | 74.6 | 30.2 | M20 | 7.6 |
UCP214-43 | UC214-43 | P214 | 2-11/16 |
| 79.4 | 266 | 210 | 72 | 25 | 31 | 27 | 156 | 74.6 | 30.2 | 3/4 | 7.6 |
UCP214-44 | UC214-44 | P214 | 2-3/4 |
| 79.4 | 266 | 210 | 72 | 25 | 31 | 27 | 156 | 74.6 | 30.2 | 3/4 | 7.6 |
UCP215 | UC215 | P215 |
| 75 | 82.6 | 275 | 217 | 74 | 25 | 31 | 28 | 163 | 77.8 | 33.3 | M20 | 8.5 |
UCP215-47 | UC215-47 | P215 | 2-15/16 |
| 82.6 | 275 | 217 | 74 | 25 | 31 | 28 | 163 | 77.8 | 33.3 | 3/4 | 8.5 |
UCP215 | UC215-48 | P215 | 3 |
| 82.6 | 275 | 217 | 74 | 25 | 31 | 28 | 163 | 77.8 | 33.3 | 3/4 | 8.5 |

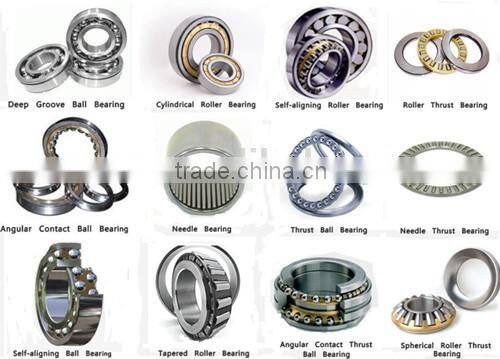

Our company mainly produces Tapered Roller Bearing, Spherical Roller Bearing, Cylindrical Roller Bearing, Deep Groove Ball Bearing, Self-Aligning Ball Bearing, Angular Contact Ball Bearing, Thrust Ball Bearing, Spherical Roller Thrust Bearing, Pillow Block Bearing, Plummer Block & Adapter Sleeve, Needle Roller Bearing,Spherical Plain Bearing & Rod End, Agricultural Bearing, Linear Motion Ball Bearing, Self-Lubrication Bearing, Universal Joint,Automotive Hub Wheel Bearing, Automotive Hub Units, Automotive Clutch Release Bearing, Automotive Water Pump Bearing, Automotive Tensioner & Idler Bearing, Automotive Alternator Bearing, Automotive Air-Conditioner Bearing.
