Newest First Choice Truck Tail Boom Lift
- Qingdao
- T/T
You May Like
-
2015 New Hot Fashion Promotion Personalized Mobile Small Boom Lift
-
Wholesale Cheap First Choice 3740048 Jlg Boom Lift
-
Cherry Picker Diesel/electric/gaslione Scissor Lift
-
New Arrival Good Quality Towable Boom Lift Crane
-
Professional Manufacturer Custom Crawler Spider Boom Lift
-
Cost Price Trade Assurance 29m Jlg Boom Lift
Product Details
| Place of Origin | Shandong, China | Brand Name | True win | |
| Model Number | LHSJZ | Lift Mechanism | Scissor Lift | |
| Lift Drive / Actuation | Hydraulic | Power | 2.2kw | |
| Rated Loading Capacity | 160kg | Min. Lifting Height | 7.7m | |
| Max. Lifting Height | 14.7m | Table Size | 550mm*550mm | |
| Overall Dimensions | 2.3*0.9*2.1m | Weight | 1500KG | |
| Certification | CE&ISO9001 | Warranty | 1 year | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Newest First Choice truck tail boom lift
Boom lift
Crank arm lift 's Features:
1.It adopted the new high quality steel, which is high strength and light weight. Its driving speed is fast.Worktable is able to rise and rotating,is the ideal aloft homework equipment.
2.Lift platform has high mobility, mobile conveniently, beautiful outlook, suitable for indoor and outdoor assignments and storage,can rotate and stretch ,easy to control.
3.Boom rotation 360°, so it can work across the barriers.
4.The trailer boom lift is safe, reliable and durable. This type of cargo-lifts with characteristics of flexible moving, smoothly lifting, big convenient operation and so on.
Application of Crank arm lift:
They can also stride across without external power supply etc, so they are widely used in highways, boat yards shopping walls, stadiums, residential property, mining workshops and any other isometric maintenance operation of complex high-altitude construction.
Paremeters of truck tail boom lift:
| model | LHSJZ-6 | LHSJZ-8 | LHSJZ-10 | LHSJZ-12 | LHSJZ-14 |
| max working height | 7.7 | 9.7 | 11.7 | 13.7 | 14.7 |
| max working radius | 1.5 | 2.2 | 2.7 | 3.2 | 3.5 |
| rotation range | 360° | 360° | 360° | 360° | 360° |
| loading capacity | 160 | 160 | 160 | 160 | 160 |
| overall size | 2.3*0.9*2.1 | 3.0*1.2*2.5 | 4.0*1.7*3.0 | 5.0*1.9*3.0 | 5.5*2.0*3.0 |
| weight | 1500 | 1700 | 1800 | 1900 | 2000 |
| lifting speed | 0.04-0.07 | 0.04-0.07 | 0.05-0.09 | 0.05-0.09 | 0.05-0.09 |
| working pressure | 10 | 10 | 10 | 10 | 10 |
| walking speed | 15-20 | 15-20 | 15-30 | 15-30 | 15-30 |
| anti-wind capacity | ≤5 level | ≤5 level | ≤5 level | ≤5 level | ≤5 level |

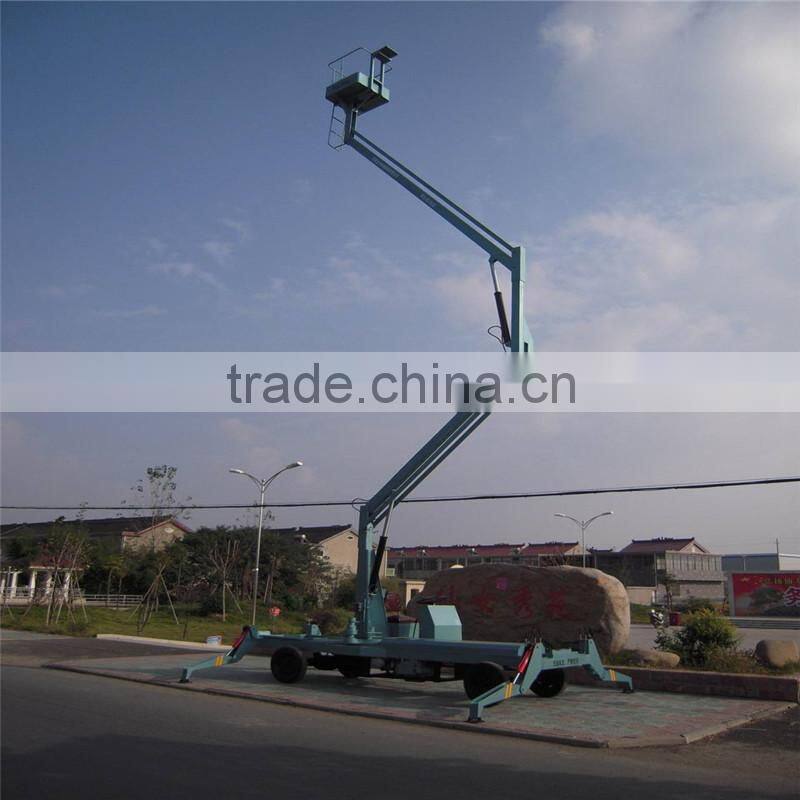

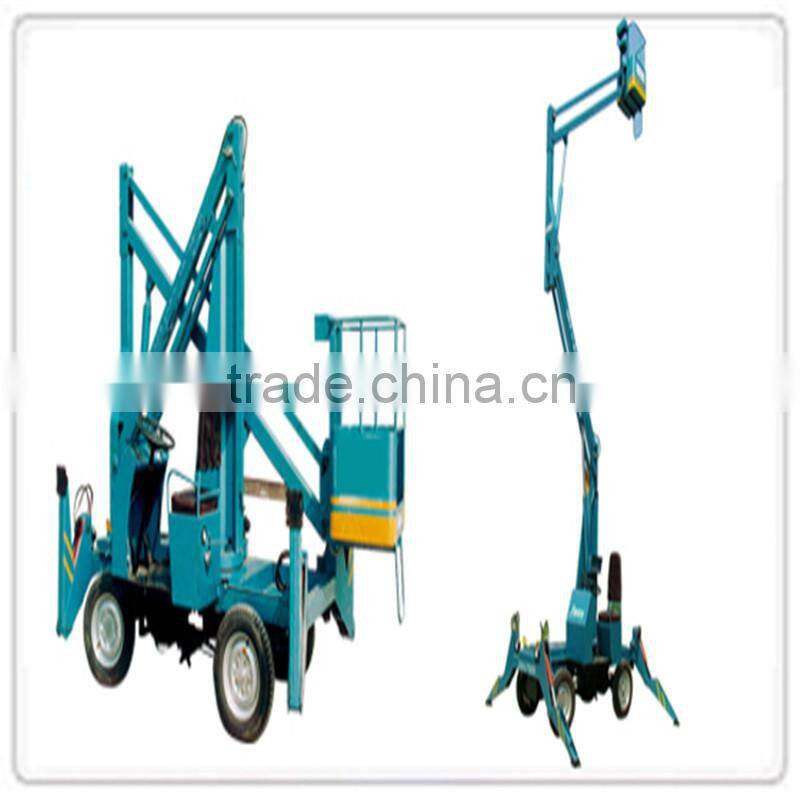

Picture of truck tail boom lift:
A. Daily or refueling: Check the parts are good or bad Check hydraulic oil level and colour
B. Every 250hours or 3months: Change lubricating oil Check cylinders
C. Every 500hours or 6 months: Check tubes, pipes and value
D. Every 1000 hours or 1 year: Change hydraulic oil Grease rotation bearing and wear pads
E. Every 2000 hours or 2 years:Check hydraulic tank, lid and vent
F. Note: Maintain the chassis according to the Chassis’ Service manual
FAQ:
Q:Who are you? Trade Company or manufacturer?
A: We are manufacturer and we have our own trade company.
Q: When the product can be delivered?
A: Commonly the lead time will be within 15 days after payment.
Q:What’s the Min order to your company?
A:1 set.The sample order, if we have stocks, we will send out the products within 1 week.
Q:What’s the advantage of your company?
A:We have exported our lifts and service to more than 100 countries. We have speclized team work for you, you will get our feedback within 24 hours./ Germany and Italian advancedmanufacturering technology.
Q:What need you know when i inquiry to you ?
A: We need to know your Max Capacity Platform size and Lift height.
truck tail boom lift
