Trailer Triangle Articulated Folding Arm Lift
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | True win | |
| Model Number | LHSJZ | Lift Mechanism | Scissor Lift | |
| Lift Drive / Actuation | Hydraulic | Power | 2.2kw | |
| Rated Loading Capacity | 160kg | Min. Lifting Height | 7.7m | |
| Max. Lifting Height | 14.7m | Table Size | 550mm*550mm | |
| Overall Dimensions | 2.3*0.9*2.1m | Weight | 1500KG | |
| Certification | CE&ISO9001 | Warranty | 1 year | |
| After-sales Service Provided | Overseas third-party support available |
Product Description

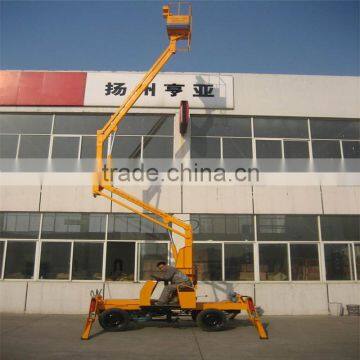

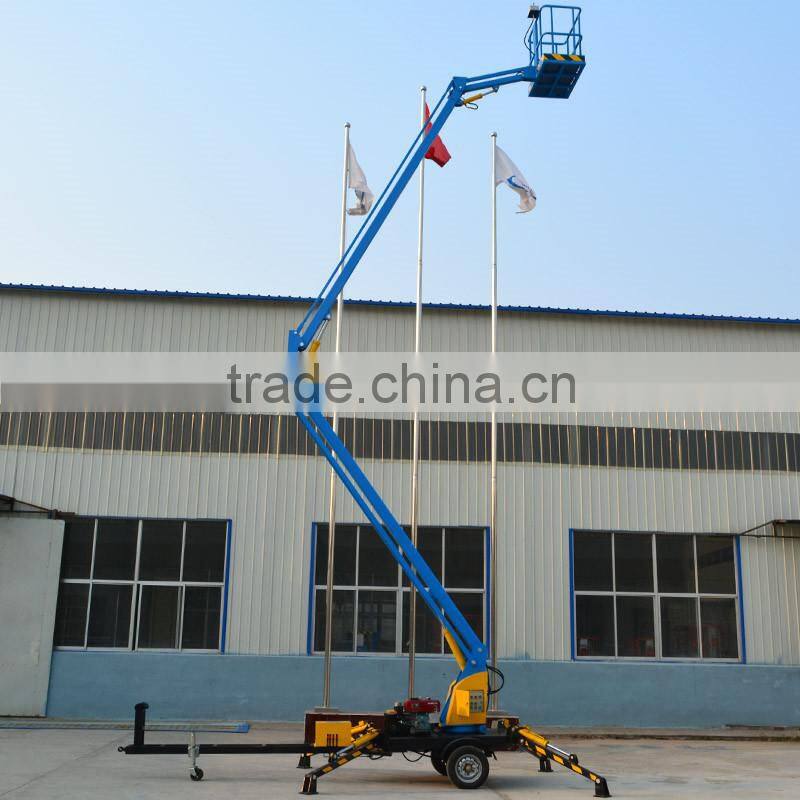

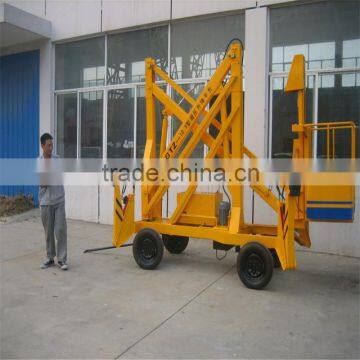

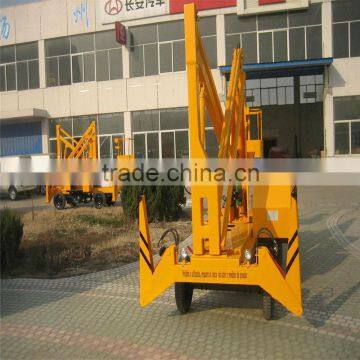

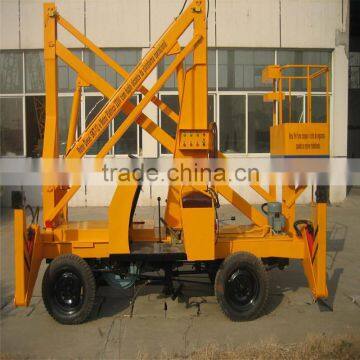

Crank arm lift table
Crank arm lift 's Features:
1.It adopted the new high quality steel, which is high strength and light weight. Its driving speed is fast.Worktable is able to rise and rotating,is the ideal aloft homework equipment.
2.Lift platform has high mobility, mobile conveniently, beautiful outlook, suitable for indoor and outdoor assignments and storage,can rotate and stretch ,easy to control.
3.Boom rotation 360°, so it can work across the barriers.
4.The trailer boom lift is safe, reliable and durable. This type of cargo-lifts with characteristics of flexible moving, smoothly lifting, big convenient operation and so on.
Application of Crank arm lift :
They can also stride across without external power supply etc, so they are widely used in highways, boat yards shopping walls, stadiums, residential property, mining workshops and any other isometric maintenance operation of complex high-altitude construction.
Crank arm lift'paremeters:
| model | LHSJZ-6 | LHSJZ-8 | LHSJZ-10 | LHSJZ-12 | LHSJZ-14 |
| max working height | 7.7 | 9.7 | 11.7 | 13.7 | 14.7 |
| max working radius | 1.5 | 2.2 | 2.7 | 3.2 | 3.5 |
| rotation range | 360° | 360° | 360° | 360° | 360° |
| loading capacity | 160 | 160 | 160 | 160 | 160 |
| overall size | 2.3*0.9*2.1 | 3.0*1.2*2.5 | 4.0*1.7*3.0 | 5.0*1.9*3.0 | 5.5*2.0*3.0 |
| weight | 1500 | 1700 | 1800 | 1900 | 2000 |
| lifting speed | 0.04-0.07 | 0.04-0.07 | 0.05-0.09 | 0.05-0.09 | 0.05-0.09 |
| working pressure | 10 | 10 | 10 | 10 | 10 |
| walking speed | 15-20 | 15-20 | 15-30 | 15-30 | 15-30 |
| anti-wind capacity | ≤5 level | ≤5 level | ≤5 level | ≤5 level | ≤5 level |
Our service :
1. All the machines will be full tested before shipment
2. The total machine guarantee is 12 moths
3. Reply your inquiry in 24 working hours
4. Customized design is available,OEM are welcomed
5. Delivery the goods to our customer all over the world with speed and precision
6. Offer customer the lowest price with high quality lifting machine
