Home > Products > TDK-Lambda Power Supplies > Lambda PAH50S48-5 50W 5V DC-DC Converters | power modules
Lambda PAH50S48-5 50W 5V DC-DC Converters | power modules
Negotiable
/ Piece
10 Pieces(Min. Order)
- Hong Kong
You May Like
Product Details
| Place of Origin | Japan | Brand Name | TDK-Lambda | |
| Model Number | PAH50S48-12 | Output Power | 1 - 50W | |
| Output Type | Single | Input Voltage | Other, 48V | |
| Output Voltage | 12V | Output Frequency | 47-63HZ | |
| Output Current | 4.17A |
Product Description
Specifications
1. Original New PAH50S48-12 x 327pcs Exstock2. High efficiency: 92%
3. High power density (industry-leading level in 450W)

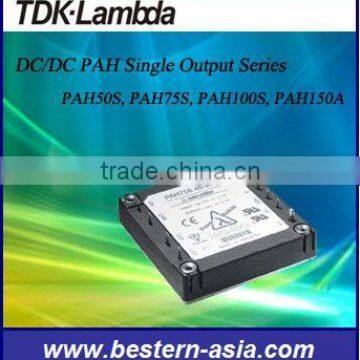

PAH Series: Single/Dual Output 50~450W,1/2 Brick Power Modules.
- High efficiency: 92% - top level in the industry (PAH450S48)
- Compact & high density: 1/2 in size and 164.8W/in3 max(PAH450S48)
- CE marking (Low voltage Directive)
- Compact DC-DC power module "HALF BRICK" SIZE
- wide input voltage range DC48V Input Type:36~76VDC
- baseplate temperature : -40~+100°C
Safty standard: Approved UL60950,CSA60950 and EN60950
Fanctions:
1. Over voltage protection
2. Over current protection
3. Thermal protection
4. Remote sensing: Remote on / off control
5. Option : Positive on / off logic(Except PAH350S)
Ordering Information:
| Model name | Nominal Output Voltage | Maximum Output Current | Maximum Output Power |
| PAH50S48-2.5 | 2.5V | 11.7A | 29.3W |
| PAH50S48-3.3 | 3.3V | 11.7A | 38.61W |
| PAH50S48-5 | 5V | 10A | 50W |
| PAH50S48-12 | 12V | 4.2A | 50.4W |
| PAH50S48-15 | 15V | 3.4A | 51W |
| PAH50S48-24 | 24V | 2.1A | 50.4W |
| PAH50S48-28 | 28V | 1.8A | 50.4W |
