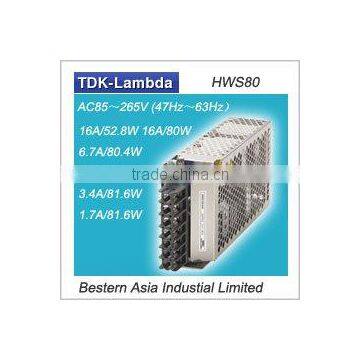

Lambda 80W AC-DC Switching Power Supply HWS80
- Hongkong
You May Like
-
Lambda 100W AC-DC Power Supply HWS100-5, HWS100-12, HWS100-24, HRS100-48
-
Lambda 150W 12V Medical Power Supply HWS150-12
-
Lambda 300W AC-DC switching Power Supply HWS300-5, HWS300-12, HWS300-15
-
Lambda 600W AC-DC Switching Power Supply HWS600-5, HWS600-24
-
Lambda 1500W AC-DC power supply HWS1500-12
-
Lambda 15W AC-DC Power Supply HWS15-12
Product Details
| Place of Origin | Japan | Brand Name | TDK-LAMBDA | |
| Model Number | HWS80 | Output Power | 1 - 50W | |
| Output Type | Single | Input Voltage | Other, AC85-265V or DC120-370V |
Product Description
Specifications
1. 80W AC-DC Power Supply: HWS80 Series2. Small-size package :minimizing 50%
3. Unified stile size by 82mm height
4. UL, CSA
TDK-Lambda 80W AC-DC Power Supply: HWS80 Series:
Ordering Information:
| Model name | Nominal Output Voltage | Maximum Output Current | Maximum Output Power |
| HWS80-3 | 3.3V | 16A | 52.8W |
| HWS80-5 | 5V | 16A | 80W |
| HW80-12 | 12V | 6.7A | 80.4W |
| HW80-15 | 15V | 5.4A | 81W |
| HW80-24 | 24V | 3.4A | 81.6W |
| HW80-48 | 48V | 1.7A | 81.6W |
Input voltage AC85~265V(47Hz~63Hz)
HWS15~150 DC120~370V,
HWS300,600 DC120~330V
Output voltage 3.3V/5V/12V/15V/24V/48V
Cooling HWS15~150 Convection cooling
HWS300~1800T Forced air by blower fan
Operating ambient temperature -10~+70°C Open frame type
-10°C~+50°C 100%,+70°C 20%)
Withstand voltage Input-output 3kVAC, Input-FG : 2kVAC, Output-FG 500VAC for 1min.
Safety standard Approved by UL60950-1,CSA22.2 No.60950-1,EN60950-1,EN50178,
Built to meet UL508, DENAN
Immunity Built to meet IEC61000-4-2(Level 2,3), -3(Level 3), -4(Level 3),
-5(Level 3,4), -6(Level 3), -8(Level 4), -11
Functions Over voltage protection, Over current protection, Remote sensing
(for HWS 80,100,150,300,600,1500)
Remote ON/OFF control (option for HWS50,80,100,150),
(for HWS300,600,1500)
SIZE 33*82*160(mm)
