cable drum jack Speaker Cable hangzhou factory

Specifications

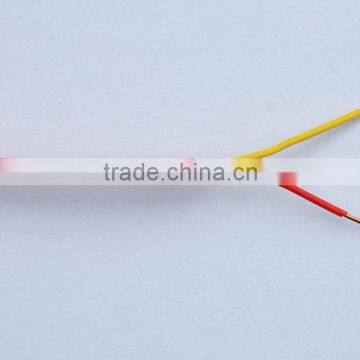

2C*0.75mm2 CCS Speaker Cable

Product Description

*2C*0.75mm2 CCS Speaker Cable

2C×24/0.20mm CCS+2.4×4.8mm  PVC

*Cable Cores: 2C

*Cross-sectional area: 0.75mm2

1)Center Conductor: 24/0.20mm High Purity Copper Clad Steel

2)Outer Jacket: 2.4×4.8mm PVC

3)Jacket Colors: Optional

The Specification of 2C*0.75mm2 Speaker Cable

Package Details

1)Package Lengths: 50m, 100m, 200m and 500m.etc.

2)Clients' package lengths are welcomed.

3)Inner Packages: Roll, Plastic Spool and Wooden reel. etc.

4)Other Inner packages are available on the basis of Clients' requirements.

5)Outer Packages: Cartons.etc.

6)Other outer packages are welcomed according to customers' requirements.

Payment

We accept T/T 30% Deposit in advance and the Balance should be paided when we see the Copy of B/L.

Shipping

1. Sample will send by DHL,UPS,FEDEX,TNT,EMS etc, you can choose any one.

2. For the big quantity you can choose your sea delivery company.

We are Lin'an Jinjin Wire & Cable CO., LTD.in China, a professional Coaxial Cables manufacturer dedicated to providing the RG Series Coaxial Cables, such as RG6, RG58, RG59, RG7, RG213 and RG11 and so on. Our Other products are including Telephone cables, High-definition digital network cables, Fire wires, Speaker Cables, Control Cables. etc. In addition to, we will develop and design some new products.

Following are our specific company address, telephone number and fax number:

Company Address: No.597, Maxi Road, Jincheng Street, Lin'an City, Zhejiang Province, 311300, China.

TEL: 86-0571-61061558

FAX: 86-0571-61075868

Speaker cable Type: Loudspeaker cable Speaker wire Twist type: Multi-twist, rope lay

(1) 10AWG 5.26 MM²   OD: 5.5X11.0 MM

(2) 12AWG 3.31 MM²   OD: 4.5X9.0MM

(3)  14AWG 2.08 MM²  OD: 3.5X7.0MM

(4)  16AWG 1.31 MM²  OD  3.0X6.0MM

(5) 18AWG  0.823 MM²  OD: 2.5X5.0MM

(6) 20AWG  0.519 MM²  OD: 2.2X4.4MM

(7)  22AWG 0.324 MM²  OD: 2.0X4.0MM

(8) 24AWG 0.205 MM²  OD: 1.8X3.6MM

(9)  O.5 MM²  OD: 2.4X4.8MM

(10)  0.75 MM²  OD: 2.5X5.0MM

(11)  1.0 MM²  OD: 2.8X5.6MM

(12)  1.5 MM²  OD: 3.2X6.4MM

(13) 2.0 MM²   OD: 3.8X7.6MM

(14) 2.5 MM²   OD:4.2X8.4MM

(15) 4.0 MM²  OD: 5.0X10.0MM

(16)  6.0 MM²  OD:  5.5X11.0MM
