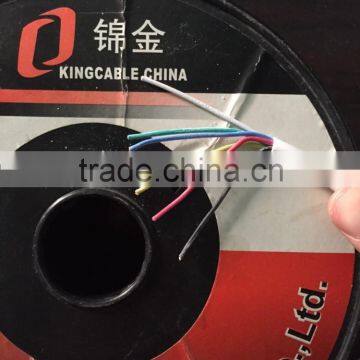

Hangzhou High quality 6 Core unshield Security Alarm Cable

FOB Price

Negotiable / Meter

3000 Meters(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

6 core unshield security cable

1.7*0.20mm or 7*0.24mm copper, tinned copper or CCA, alarm cable.
2.shield or unshield, PVC LSZH

ALARM CABLE

SECURITY CABLE

7/0.20mm stranded or 14*0.20mm, 6 cores unshield or we can produce as per buyer's request.

7*0.18mm, 7*0.20mm or 7*0.24mm copper, tinned copper or CCA, stranded, shield or unshield, good PVC, LZSH PVC

1.Conductor: bare copper or tinned copper or CCA or CCS conductor

2. Insulation:PVC-flame proof or common PVC insulation

3.Cable core: 2C, 4C, 6C, 8C, 12C, etc are available

4. Rip cord.

5.Jacked: PVC-flame proof or common PVC insulation,CMP,CM.

6. Standard packing: 100m/box, 100m/plastic spool, 305m/wooden spool

7. Application: used for alarm mechanisms or security system.

Electrical Properties:

Nom.DC Resistance per Conductor@20	6.43Ohms/Kft.nom.
CapacitanceBetween Conductors@1KHZ	35pF/ft.nom.
Operating Voltage	300V/RMS max
Temperature Rating	-20oC to 60oC
