Home > Products > Fire Alarm Cable > Fire Retardant Shielded Security Alarm cable

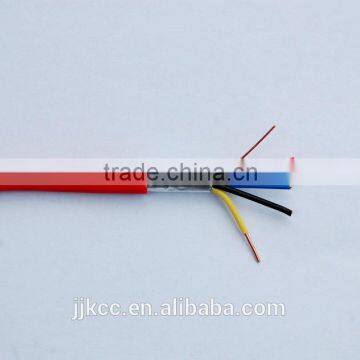

Fire Retardant Shielded Security Alarm cable
- ningbo/shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | jinjin | |
| Model Number | FIRE ALARN wire | Type | Cat 2 | |
| Number of Conductors | 2 |
Product Description
Specifications
High quality FIRE ALARM Cable is our special product ,it has competitive price.Product details
No. of Cores x Nominal Cross Sectional Area(mm2) | No. and Nominal Diameter of Strands(mm) | Nominal Overall Diameter (mm) |
2 x 0.22 | 7/0.20 | 3.0 |
4 x 0.22 | 7/0.20 | 3.5 |
6x 0.22 | 7/0.20 | 4.1 |
8x 0.22 | 7/0.20 | 4.5 |
10x 0.22 | 7/0.20 | 5.2 |
12x 0.22 | 7/0.20 | 5.4 |
14x 0.22 | 7/0.20 | 5.8 |
20x 0.22 | 7/0.20 | 6.8 |
30x 0.22 | 7/0.20 | 8.4 |
40x 0.22 | 7/0.20 | 10.0 |
2x0.5+2x0.22 | 16/0.20+7/0.20 | 4.1 |
2x0.5+4x0.22 | 16/0.20+7/0.20 | 4.4 |
2x0.5+6x0.22 | 16/0.20+7/0.20 | 5.2 |
2x0.5+8x0.22 | 16/0.20+7/0.20 | 5.4 |
2x0.5+10x0.22 | 16/0.20+7/0.20 | 5.8 |
2x0.5+12x0.22 | 16/0.20+7/0.20 | 5.9 |
2x0.5+14x0.22 | 16/0.20+7/0.20 | 6.3 |
2x0.5+16x0.22 | 16/0.20+7/0.20 | 6.6 |
2x0.5+20x0.22 | 24/0.20+7/0.20 | 7.1 |
2x0.75+2x0.22 | 24/0.20+7/0.20 | 4.8 |
2x0.75+4x0.22 | 24/0.20+7/0.20 | 5.0 |
2x0.75+6x0.22 | 24/0.20+7/0.20 | 5.4 |
2x0.75+8x0.22 | 24/0.20+7/0.20 | 5.8 |
2x0.75+10x0.22 | 24/0.20+7/0.20 | 6.2 |
2x0.75+12x0.22 | 24/0.20+7/0.20 | 6.4 |
2x0.75+14x0.22 | 24/0.20+7/0.20 | 6.6 |
2x0.75+20x0.22 | 24/0.20+7/0.20 | 7.8 |
more informations welcome to contact us!
