rg6 and rg 59 wire

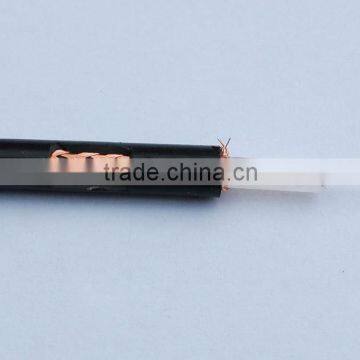

RG-59 Coaxial cable

The Description of Quad Shield RG59 Coaxial Cable for CATV/MATV/CCTV Equipments:

1/1.0mm CU+4.8mm Foamed PE+100%Bonded Aluminum Foil Shield+64/0.12mm AL.wire Shield-40% Coverage+100%Double-sided Aluminum Foil shield+64/0.12mm AL.wire Shield-40% Coverage+7.3mm PVC.

The clients' designations are avaliable.

The Specification of Quad Shield RG59 Coaxial Cable for CATV/MATV/CCTV Equipments:

1)Inner Conductor: 1.0mm CU;

2)Insulation: 4.8mm Foamed PE;

3)Aluminum Foil Shield: 100%Bonded Aluminum Foil and 100%Duoble-sided Aluminum Foil;

4)Braid Shield: 64/0.12mm AL.wire-40%Coverage;

5)Outer Jacket: 7.3mm PVC.

Cable structure

RG-6 Electrical Characteristics

Attenuation Table(at 20°C)

 Application

It's widely used in CATV, MATV and CCTV equipments fields.

RAW MATERIAL:

ASSEMBLY LINE:

Brading:

SEMI-FINISHED PRODUCT

PACKAGE:

 TESTING

RL TESTING,  Characteristic Impedance, capacitance tsting,

PVC,FPE,MATERIAL DENSITY TESTING

EG: TESTING PAPER, We are very strict on quality control,from raw material to finished product,

  Product Gallery:

certification:

Transportation

1). All available shipping ways could be applied, by courier,air or sea .

2). Appointed shipping company or our own forwarders all could be used in  shipment .

3). Full -way tracking the cargos for you before the goods arrive .

For more information,welcome to meet me on Trade manager or just call us for free!
