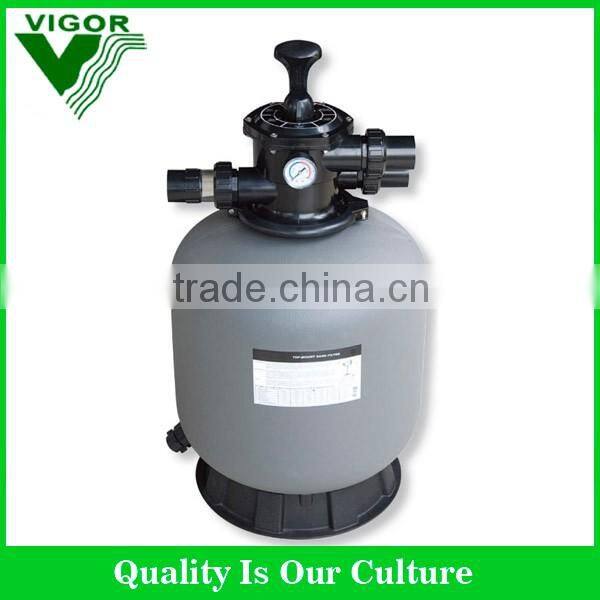

Factory Hot Sales High Quality Fiberglass Swimming Pool Top-mount Sand Filter

Factory Hot sales high quality fiberglass swimming pool top-mount sand filter

1.Functions

Maximum working pressure: 250kPa/ 36psi/ 2.5bar

Factory testing pressure: 400kPa/58psi/ 4.0bar

Size of silica sand: 0.5-0.8mm

Maximum filtration velocity: 50m3/h/m2

Maximum water temperature: 43 degree

2.Technical Characteristics

dia-350, 0.09 sq meter(filter area), 1.5’’/50mm(valve connections) 4.32 cbm/h(flow rate) 20kg(sand)

dia-400, 0.13 sq meter(filter area), 1.5’’/50mm(valve connections) 6.48 cbm/h(flow rate) 35kg(sand)

dia-450, 0.16 sq meter(filter area), 1.5’’/50mm(valve connections) 8.1 cbm/h(flow rate) 45kg(sand)

dia-500, 0.22 sq meter(filter area), 1.5’’/50mm(valve connections) 11.1 cbm/h(flow rate) 85kg(sand)

dia-650, 0.32 sq meter(filter area), 1.5’’/50mm(valve connections) 15.6 cbm/h(flow rate) 145kg(sand)

dia-700, 0.40 sq meter(filter area), 1.5’’/50mm(valve connections) 19.5 cbm/h(flow rate) 210kg(sand)

dia-700(B), 0.41 sq meter(filter area), 2’’/63mm(valve connections) 20.2cbm/h(flow rate) 215kg(sand)

dia-800, 0.50 sq meter(filter area), 2’’/63mm(valve connections) 24.9cbm/h(flow rate) 355kg(sand)

dia-700, 0.64 sq meter(filter area), 2.0’’/63mm(valve connections) 31.2 cbm/h(flow rate) 470kg(sand)

dia-1000, 0.40 sq meter(filter area), 2’’/63mm(valve connections) 39.0 cbm/h(flow rate) 620kg(sand)

dia-1200, 0.40 sq meter(filter area), 2’’/63mm(valve connections) 51.6 cbm/h(flow rate) 860kg(sand)

3.More information about our company

a.we have a beautiful and professional showroom

b.we are a strong work team

c.we had goor reputation all over the world

Why Choose Us?

1. More than 15 years production & sales experience

2. Direct selling with guaranteed quality products

3. Good reputation,buyers choice

4. Timely Delivery

5. Unbeatable price

6. Top Craftmanship

7. China's only company with complete range of swimming pool and spa products.

8. Better after-sale service

9. Newest production equipment

Payment Terms?

1. Payment:30% in advance,+70% balance should be paid before delivery.

2. Lead time:1x20ft for 15 days;1x40ft for 20 days

3. Port of loading:guangzhou, China (Mainland)

4. Discounts are offered based on order quantities.
