Description

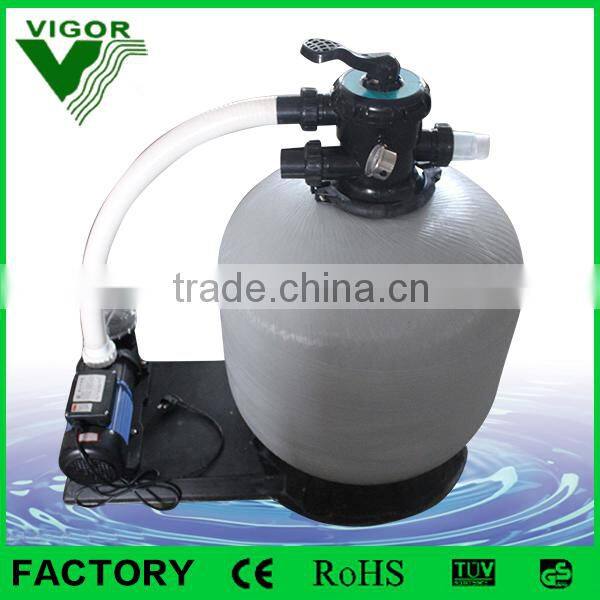

FSF SERIES TOP MOUNT SAND FILTER

Designed for easy set-up domestic pool, "FSF" Series filtration combo offers the right solution for home user who is looking for user-friendly and excellent filtration performance. "FSF" Series Filtration Combo includes top mount fiberglass filter tank, 6-way multiport valve, swimming pool pumps attached with base.

Features:

• Suggested Installation: Domestic swimming pool
• Easy installation with pre-installed plumbing system and base
• Simple operation with 4-way multiport valve
• Filter structure with UV resistance material
• Max operating pressure 36psi / 2.5 bar
• Max temperature of 43°C (109°F)
• Suggested size of media : 0.5-0.8mm

 Technical characteristics

 Detail Picture of our sand filter:

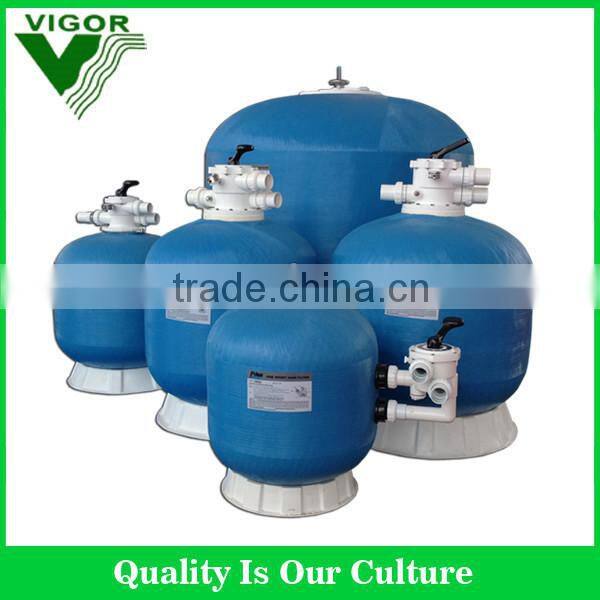

More series of our sand filter

Instruction of install our pool filter :

INSTALLATION

* Install filtration system including pump,filter tank and multi-port valve.

* The filter system should be installed as close as possible to the swimming pool and preferably at a level

of 0.50 meters below the surface of the water in the swimming pool. Make sure there is drainage available

at the place where the filter is to be installed.

* FILTER TANK and MULTIPORT VALVE

1.Loading the sand media.Filter sand media is loaded through the top opening of the filter.

2.Assemble filter control valve to filter tank.

3.Make return to pool pipe connection to control valve opening marked RETURN and complete other necessary plumbing connections,suction lines to pump,waste,etc.

4.To prevent water leakage,be sure all pipe connections are tight.

Manufacturing factory & Production Process of our sand filter

 We have a experience and expertise together with our devoted staffs.

Our goal is " Quality is our culture and we will try best to provide the unsurpassed customer service"

 Our company and office and join the exhibition

we, vigor company have been attend different exibition and our pool,spa and sauna product is hot sale overseas and get gain the trust from our customer.

III. if you want to know more, please contact with me. Thank you.
