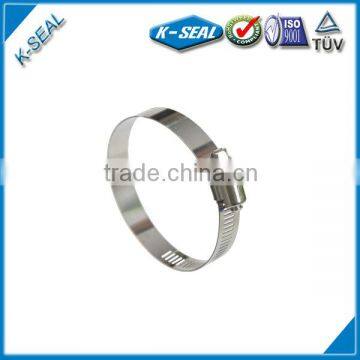

SAE J1508 Stainless Steel American Type Hose Clamp KF48SS

Place of Origin	Anhui, China		Brand Name	K-Seal
Model Number	KF48SS		Usage	Pipe Clamp
Material	Other, Stainless Steel, 301 stainless steel		Structure	F Clamp
Standard or Nonstandard	Standard

Specifications

100 years American Technology
China Excellent Manufacturing
Partner of Fortune top 500
Leading Brand inAmerican hose clamp

SAE J1508 Stainless Steel American Type Hose Clamp KF48SS

1)bandwidth: 12.7mm Thickness:0.6mm
2)diameter :65-89mm
3) Installation Torque : 4.0-5.1N.M, Ultimate torque 6.8 N.M

4)The hose clamp material different, its corrosion resistance is also different. Customers can choose a suitable hose clamps according to their practical application.



KF-SS” Series

All “300”Series Stainless Steel Construction

Band, housing and screw are 300 Series Stainless Steel. Screw is 5/16’’ slotted hex head.

The all-300 Series Stainless construction provides better corrosion resistance than that available from the “KH-SS” series, making this clamp well suited for marine applications.



Rated Ultimate Torque:

60in.lbs .min. (6.8Nm)

Recommended Installation Torque:

35-45in.lbs. (4.0 – 5.1Nm)





K-Seal Size					Diameter Range
All Stainless Steel	All 201+carbon steel screw	AISI All 201ss	AISI All 301ss	AISI All 316ss	Decimals MIN.  MAX.	Inches MIN.  MAX.		Millimeters  MIN.  MAX
KA6SS	KB6	KB6SS	KF6SS	KL6SS	.44      .78	7/16	25/32	11-20
KA8SS	KB8	KB8SS	KF8SS	KL8SS	.44      .91	7/16	29/32	11-23
KA10SS	KB10	KB10SS	KF10SS	KL10SS	.56      1.06	9/16	1-1/16	14-27
KA12SS	KB12	KB12SS	KF12SS	KL12SS	.69      1.25	11/16	1-1/4	17-32
KA16SS	KB16	KB16SS	KF16SS	KL16SS	.75      1.50	3/4	1-1/2	19-38
KA20SS	KB20	KB20SS	KF20SS	KL20SS	.81      1.75	13/16	1-3/4	21-44
KA24SS	KB24	KB24SS	KF24SS	KL24SS	1.06    2.00	1-1/16	2	27-51
KA28SS	KB28	KB28SS	KF28SS	KL28SS	1.31    2.25	1-5/16	2-1/4	33-57
KA32SS	KB32	KB32SS	KF32SS	KL32SS	1.56    2.50	1-9/16	2-1/2	40-64
KA36SS	KB36	KB36SS	KF36SS	KL36SS	1.81    2.75	1-13/16	2-3/4	46-70
KA40SS	KB40	KB40SS	KF40SS	KL40SS	2.06    3.00	2-1/16	3	52-76
KA44SS	KB44	KB44SS	KF44SS	KL44SS	2.31    3.25	2-5/16	3-1/4	59-83
KA48SS	KB48	KB48SS	KF48SS	KL48SS	2.56    3.50	2-9/16	3-1/2	65-89
KA52SS	KB52	KB52SS	KF52SS	KL52SS	2.81    3.75	2-13/16	3-3/4	71-95
KA56SS	KB56	KB56SS	KF56SS	KL56SS	3.06    4.00	3-1/16	4	78-102
KA60SS	KB60	KB60SS	KF60SS	KL60SS	3.31    4.25	3-5/16	4-1/4	84-108
KA64SS	KB64	KB64SS	KF64SS	KL64SS	3.56    4.50	3-9/16	4-1/2	90-114
KA72SS	KB72	KB72SS	KF72SS	KL72SS	4.06    5.00	4-1/16	5	103-127
KA80SS	KB80	KB80SS	KF80SS	KL80SS	4.56    5.50	4-9/16	5-1/2	116-140
KA88SS	KB88	KB88SS	KF88SS	KL88SS	5.06    6.00	5-1/16	6	129-152
KA96SS	KB96	KB96SS	KF96SS	KL96SS	5.56    6.50	5-9/16	6-1/2	141-165
KA104SS	KB104	KB104SS	KF104SS	KL104SS	6.06    7.00	6-1/16	7	154-178
KA116SS	KB116	KB116SS	KF116SS	KL116SS	6.50    7.75	6-1/2	7-3/4	165-197
KA128SS	KB128	KB128SS	KF128SS	KL128SS	5.69    8.50	5-11/16	8-1/2	144-216
KA140SS	KB140	KB140SS	KF140SS	KL140SS	6.44    9.25	6-7/16	9-1/4	163-235
KA152SS	KB152	KB152SS	KF152SS	KL152SS	7.19   10.00	7-3/16	10	182-254
KA164SS	KB164	KB164SS	KF164SS	KL164SS	7.94   10.75	7-15/16	10-3/4	201-273
KA176SS	KB176	KB176SS	KF176SS	KL176SS	8.69   11.50	8-11/16	11-1/2	225-292
KA188SS	KB188	KB188SS	KF188SS	KL188SS	9.44   12.25	9-7/16	12-1/4	239-311
KA200SS	KB200	KB200SS	KF200SS	KL200SS	10.19 13.00	10-3/16	13	259-330
KA212SS	KB212	KB212SS	KF212SS	KL212SS	10.94 13.75	10-15/16	13-4/4	277-349
KA224SS	KB224	KB224SS	KF224SS	KL224SS	11.69 14.50	11-11/16	14-1/2	296-368
KA236SS	KB236	KB236SS	KF236SS	KL236SS	12.44 15.25	12-7/16	15-1/4	315-387
KA248SS	KB248	KB248SS	KF248SS	KL248SS	13.19 16.00	13-3/16	16	335-406





Q And A :

1. Q: Does your hose clamps produce by your own company or import?

    A:  The clamps is home made by our own factory. King Seal is an American-owned manufacturer in China. The Equipment and Technology are from USA.



2. Q: Which is better material for SS200 and SS300? We need the best one.

    A:  Regarding corrosion resistance, SS 300 is better than SS200, The other performances are basically same. If you prefer better corrosion resistance, SS316 is the best choice.



3. Q:  We do biotechnology business. The hose clamps application environment involves acid-base environment. Please advise whether we can use SS304?

    A:   SS304 has relatively high corrosion resistance, but if Acid-base environment is strongly high, SS316 clamp is the best choice.



4. Q:   Is SS304 material magnetic?

    A:   SS304 itself has no magnetism, But it could generate certain magnetism during production process.



5. Q:  Your stainless steel clamps looks good, do you electroplate them on the surface?

    A:   We run some polish process on the surface but it’s not electroplated.
