Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | blow molding machine | Model Number | ABLB45II/2 | |
| Voltage | 220V | Power(W) | 19.5W | |
| Dimension(L*W*H) | 2.6*1.6*2.2 M | Weight | 3T | |
| Certification | CE | Warranty | 1 Year | |
| After-sales Service Provided | Overseas service center available |
Product Description

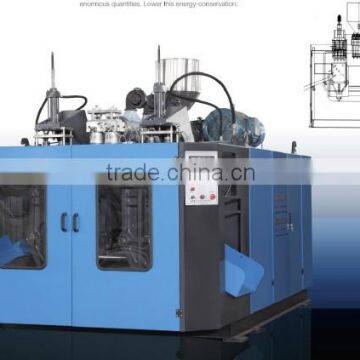

Automatic extrusion blow molding machine
Model No.: ABLB45II/2(Double station double die head)
ABLB45 full automatic extrusion blow molding machine was specially designed for making plastic water bottles,medical bottles,oil bottles,plastic balls ,suction tubes and other small plastic containers not over 2L.
The features of this machine:
(1)It is suitable for producing PE,HDPE,PP, PVC,PETG,PS so on,plastic containers and bottles in all shapes are available,the duct volume is up to 2L.
(2)Double station double die design,very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low investment,high efficiency,quick and safe operation,easy for maintenance.
Suitable for making:
Main parts of Machine | Picture | Explanation |

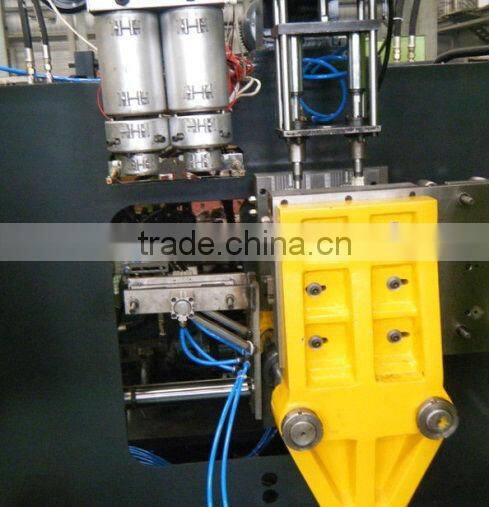

Mould Open and Close machanism | |
Single station Open and close the mould |

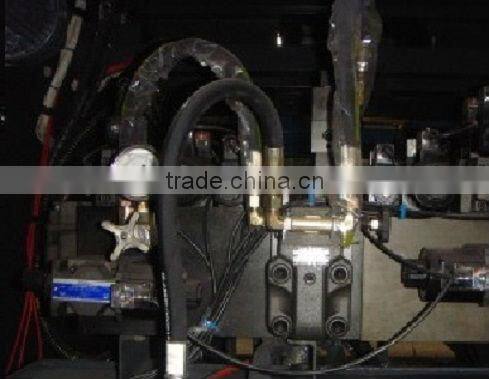

Oil Pump | | Oil pump From JAPAN YUKEN use to drive the machine |

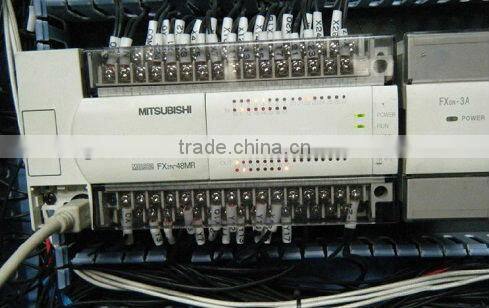

Computer control system (PLC) | | Japanese Mitisubishi PLC
Used to control all electrial components and touch screen |
Electric Cabinet | | This part is the full electric components of the machine |
The main components of the machine. ( ABLB45II/2)
electronic parts | |
Name | Trader |
Micro computer control system | Japanese MITSUBISHI |
Temperature Controller | TAIWAN YANHUA PID |
Auxiliary Relay | OMRON |
contactor | Schneider from France |
Electric motor | Three phase 220V or 380V |
Power Source | TAIWAN MEANWELL |
Transducer | TAIDA FROM CHINA |
hydraulic parts | |
Name | Trader |
Oil pump | TAIWAN HIGH-TECH |
Valve | JAPAN YUKEN |
Oil pump and connection | JAPAN YUKEN |
Sealed part | HALLITE |
air control system | |
Name | Trader |
Cylinder | AIRTAC |
Air Valve | FESTO |
Technical Parameters: ( ABLB45II/2)
Max. Product volume | 1L |
Out put capacity | 500~600pcs/h |
Screw diameter | 45mm |
Screw L/D ratio | 24:1 L/D |
Screw drive power | 11 KW |
Screw heating capacity | 3 KW |
No.of heating zone | 3 zones |
Output of HDPE | 35 KG/H |
Oil pump drive power | 5.5 KW |
Clamping force | 35KN |
Max.size of mold | 250 X 320 mm |
Mold stroke | 100-360 mm |
Max.die diameter | 80mm |
Blowing pressure | 0.6 mpa |
Air Volume | 0.6 M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 30 L/MIN |
Size of Machine | 2.6x1.6x2.2m |
Weight of machine | 3 ton |
WARRANTY:
We warranty the quality of this machine for 12 months ,if there is any problem with the machine ,or any main parts are broken, we will repair it or replace new for free.
TRAINNING:The seller should train two or three operating man for free. (Travel and hotel is by buyer’s expenses.)
VALIDITY OF OUR OFFER:The offer is valid for any order placed within a period of 30 days. Unless otherwise stated, all conditions and terms are based on this list.The offer is offered for the buyer’s need in selecting and not act as the enclosure of contract. The contract is the only standard.
